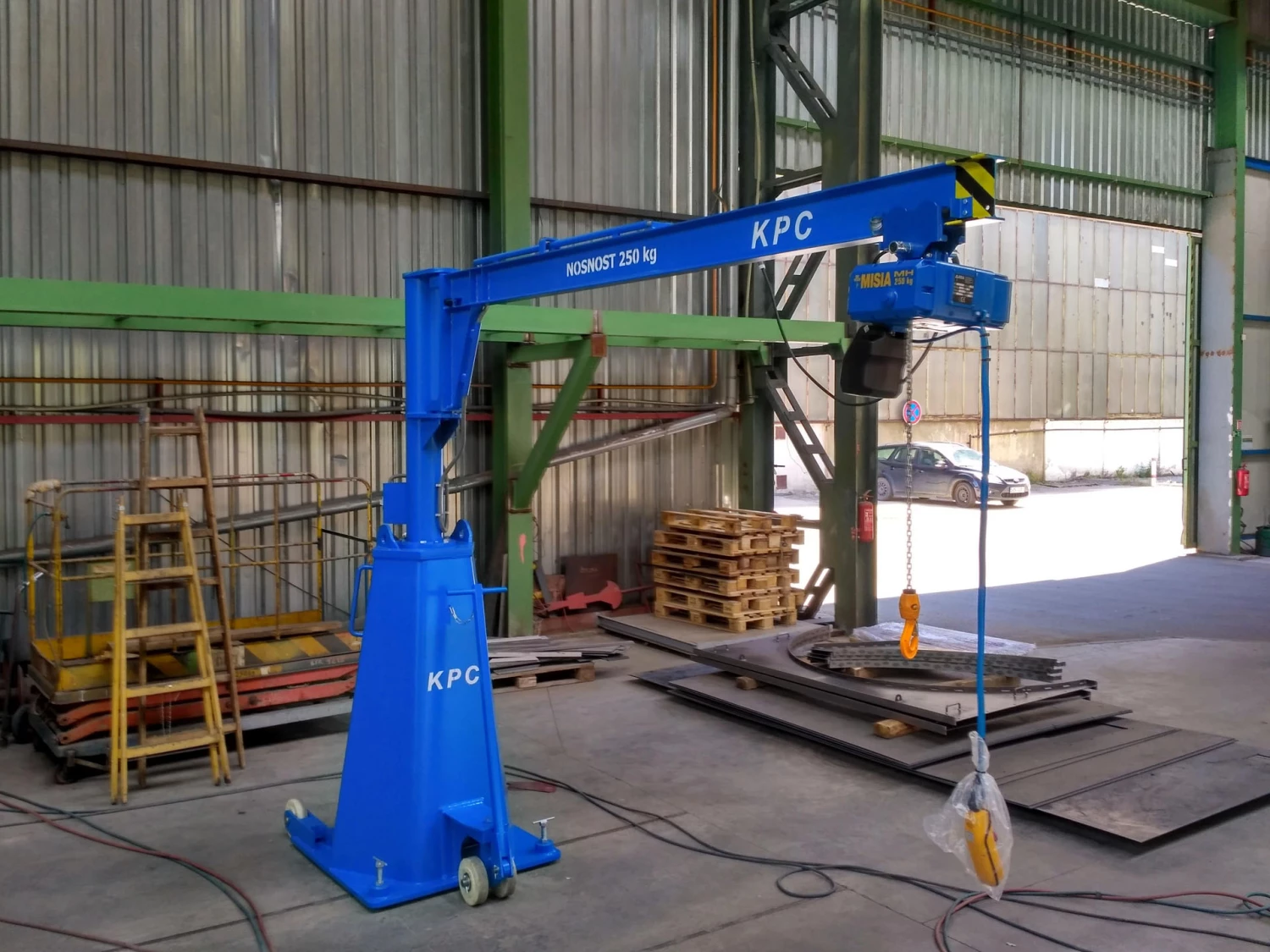

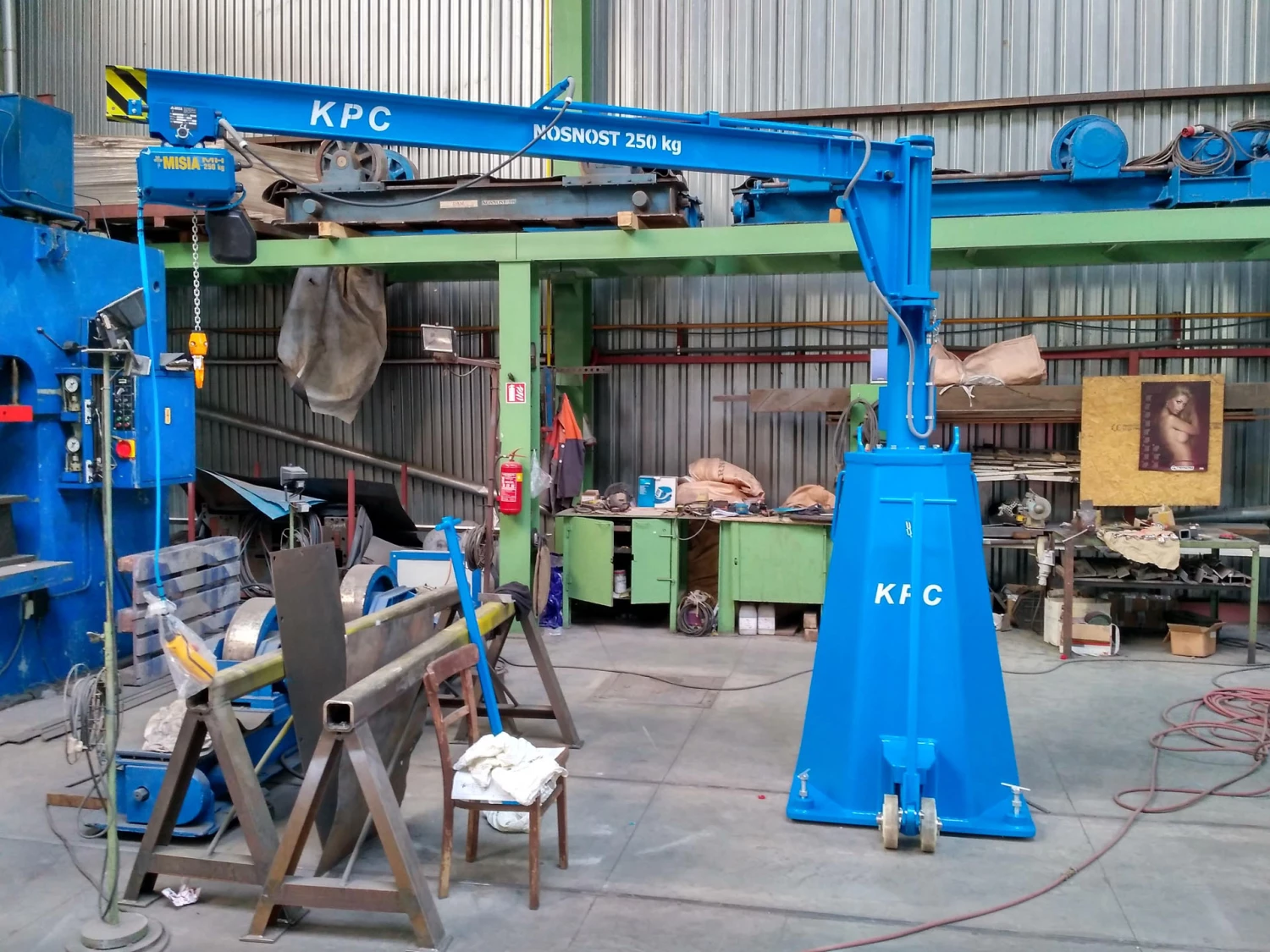

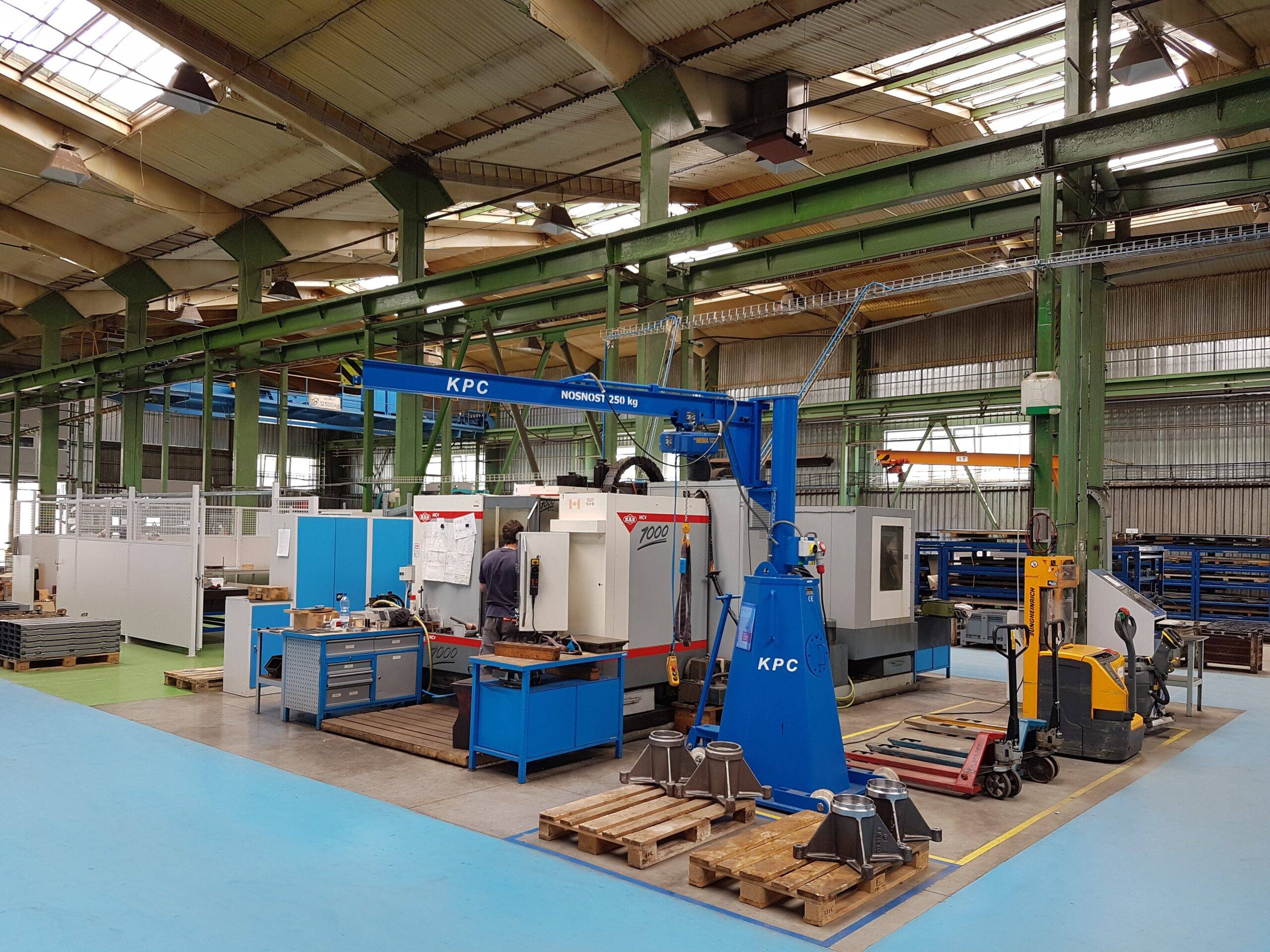

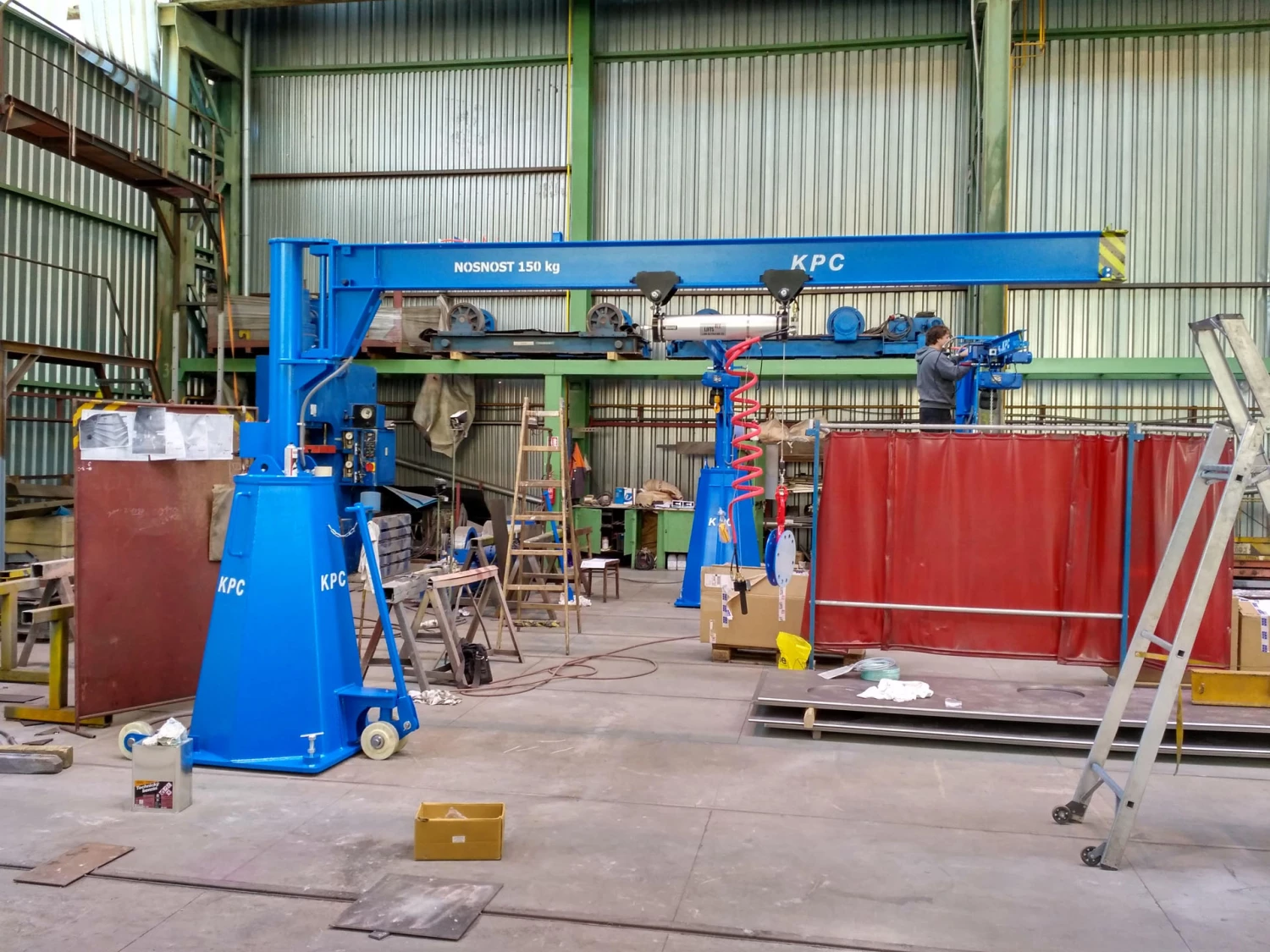

We use the mobile column crane where there is a need to flexibly serve a specific workplace without interfering with the building structure.
It consists of a column with a boom on which the hoist travels and the whole set is placed on a mobile base. It can thus be moved manually between the various stations according to the actual needs of production or assembly.
They are typically used for handling parts in machines, assembly lines or service areas. Advantages include easy installation, the ability to change workstation layout and ergonomic, safe handling within reach of the boom. Operation is usually by means of a hanging control.

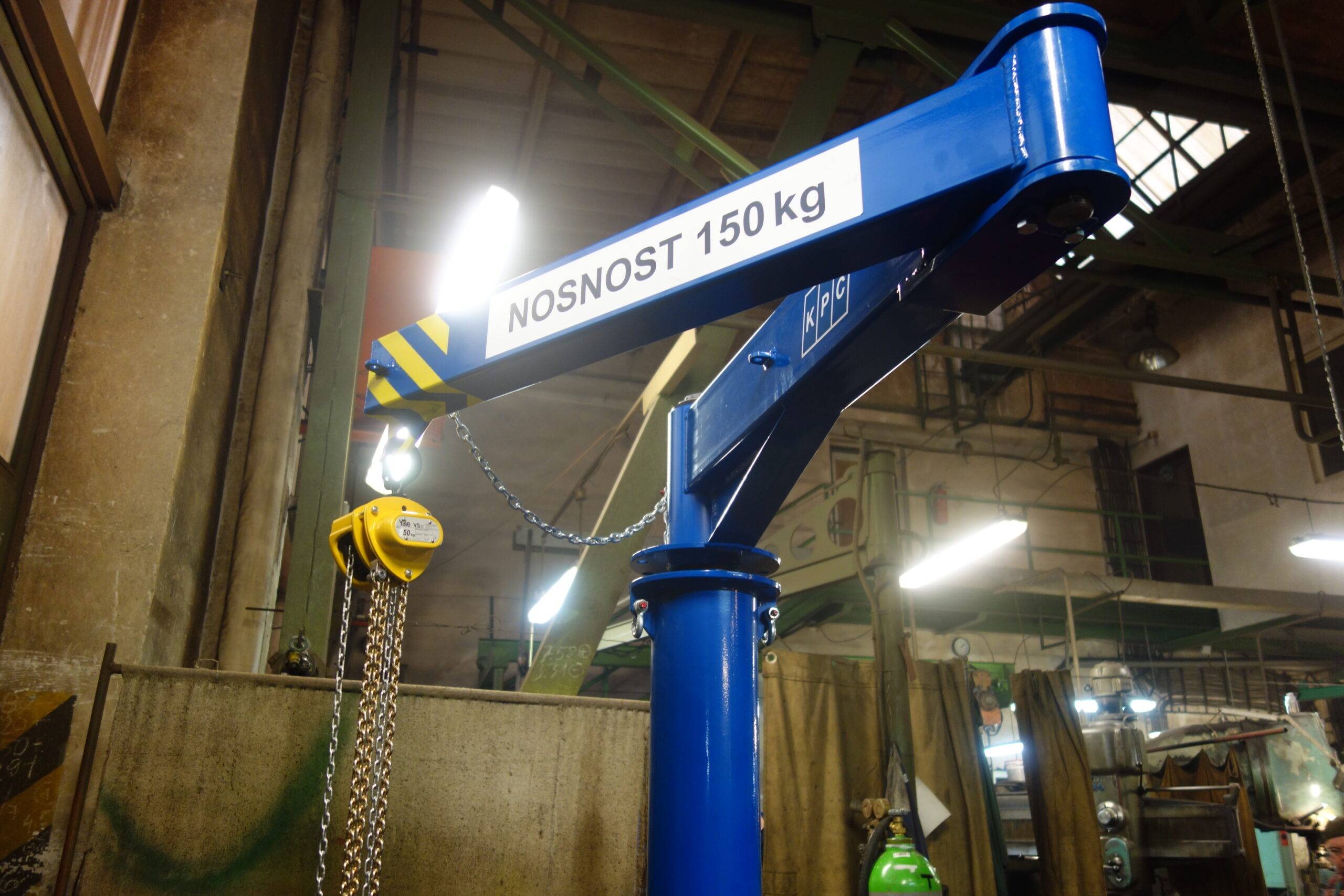

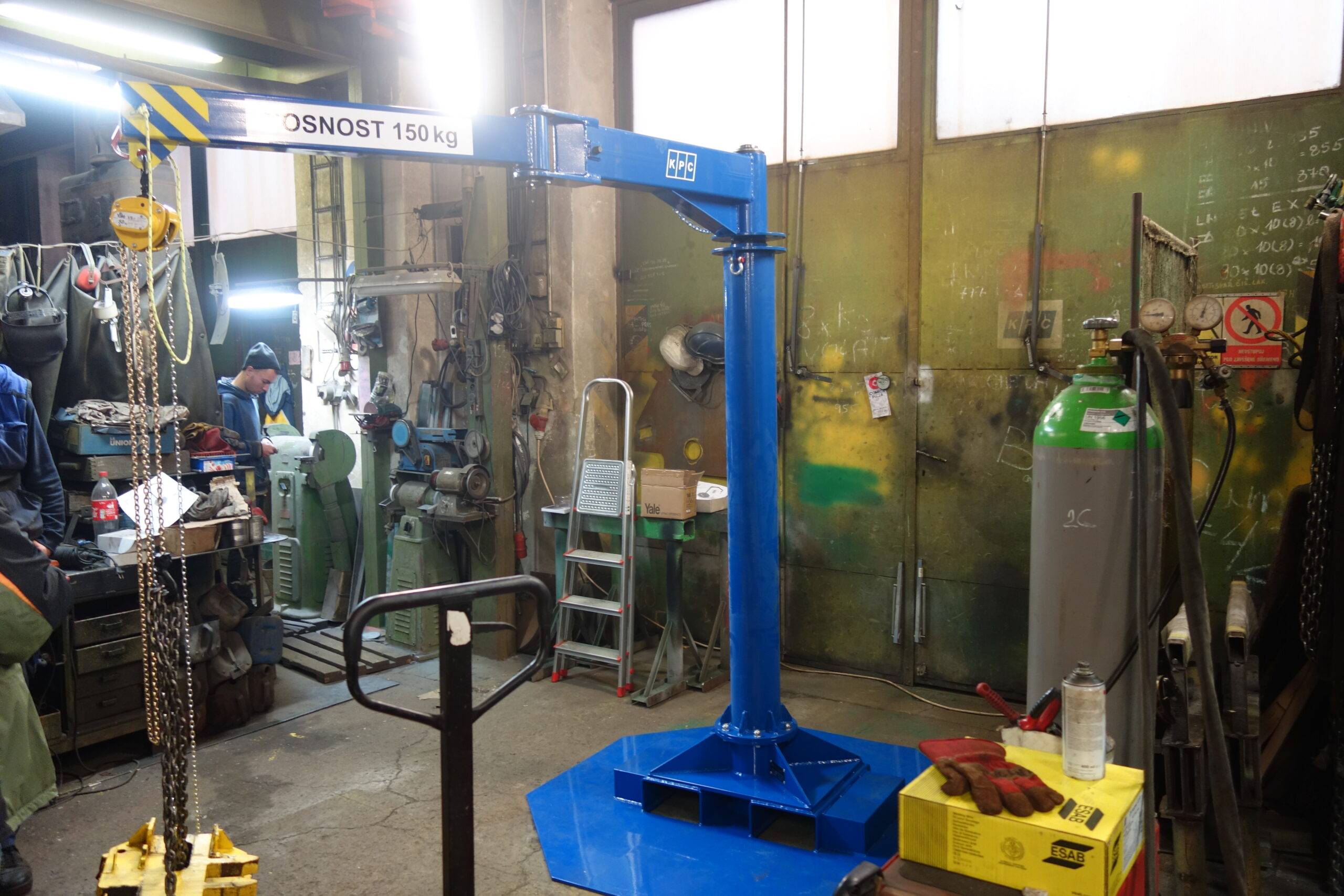

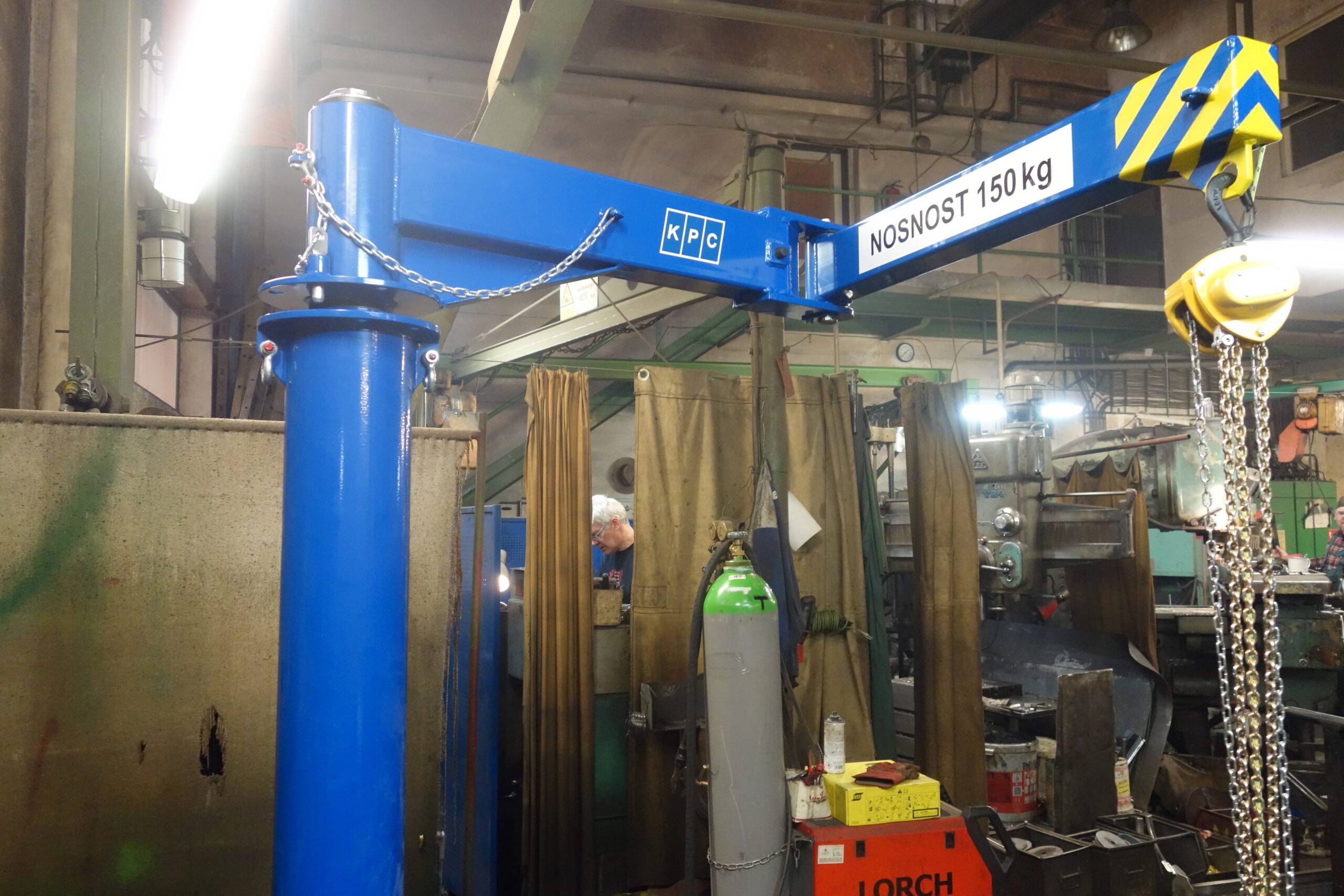

The mobile column cranes with a broken boom are designed for vertical and horizontal transport of loads within the reach of the swivel boom.
The crane has a solid base and can be easily moved by pallet truck, forklift or by hanging on an overhead crane. The design consists of a base, a column and a swivel boom, at the end of which a manual or electric chain hoist is permanently suspended.
The broken arm covers a handling space of 1950 mm radius and the product range includes load capacities of 60, 100 and 150 kg.

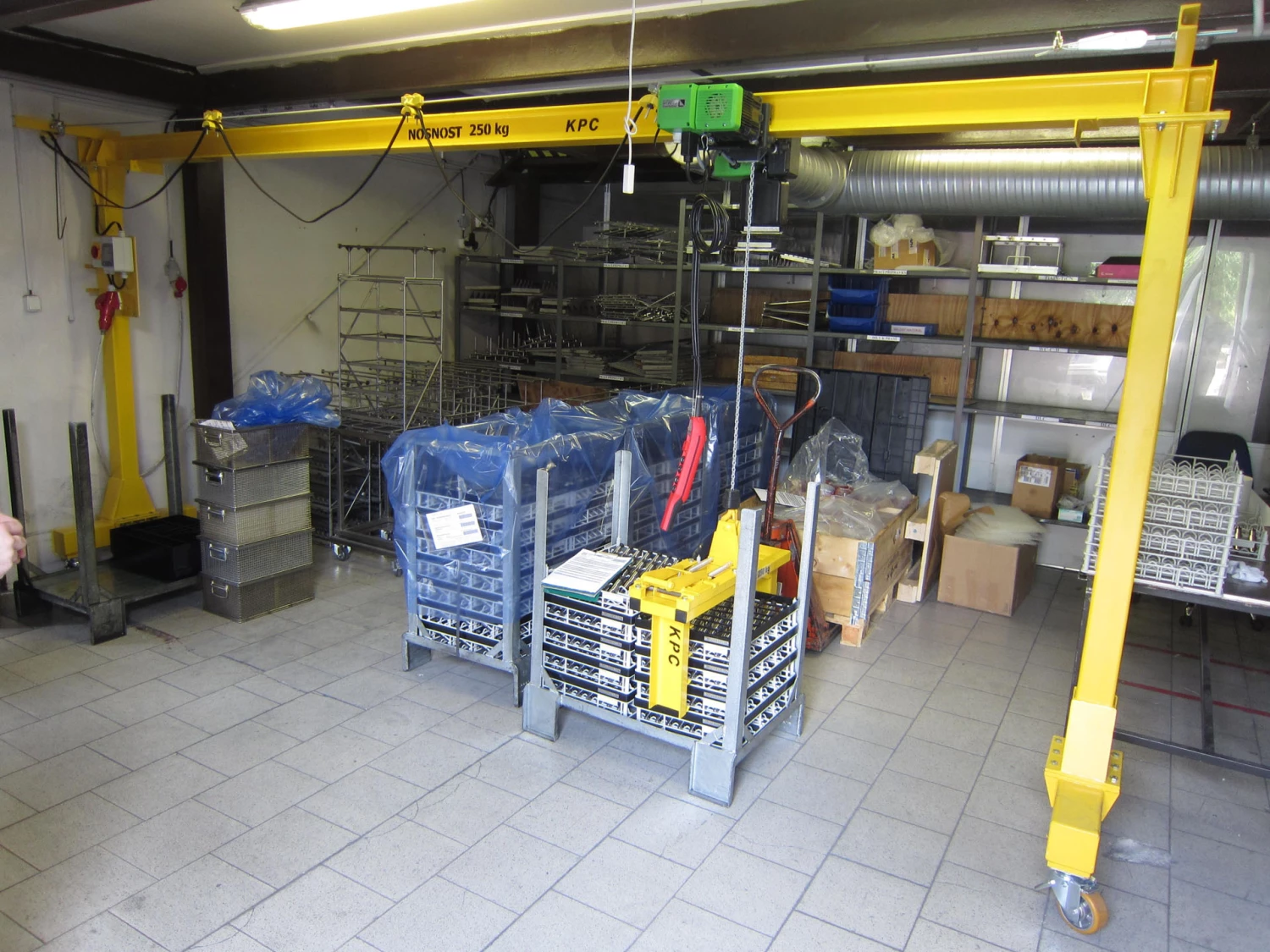

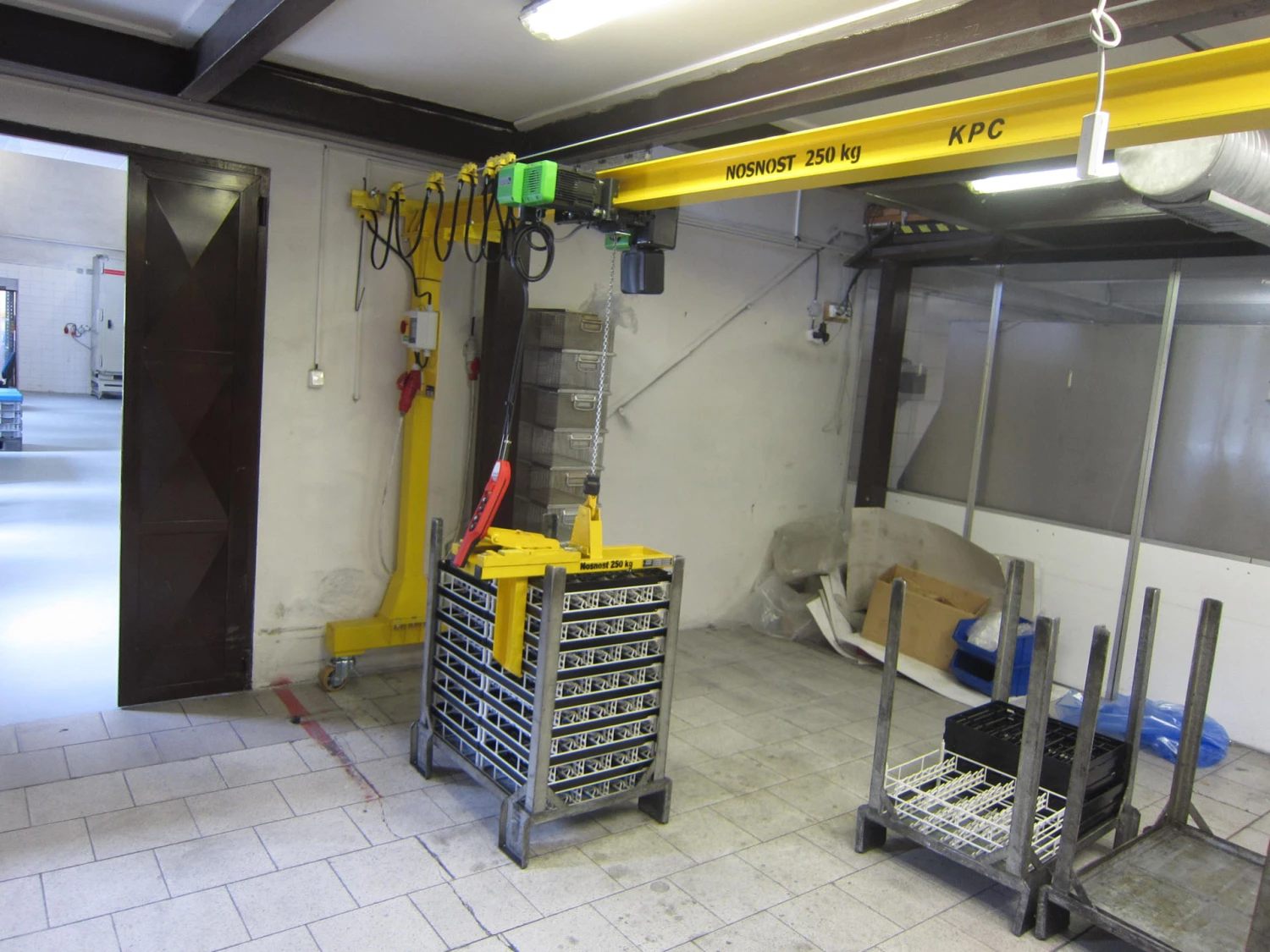

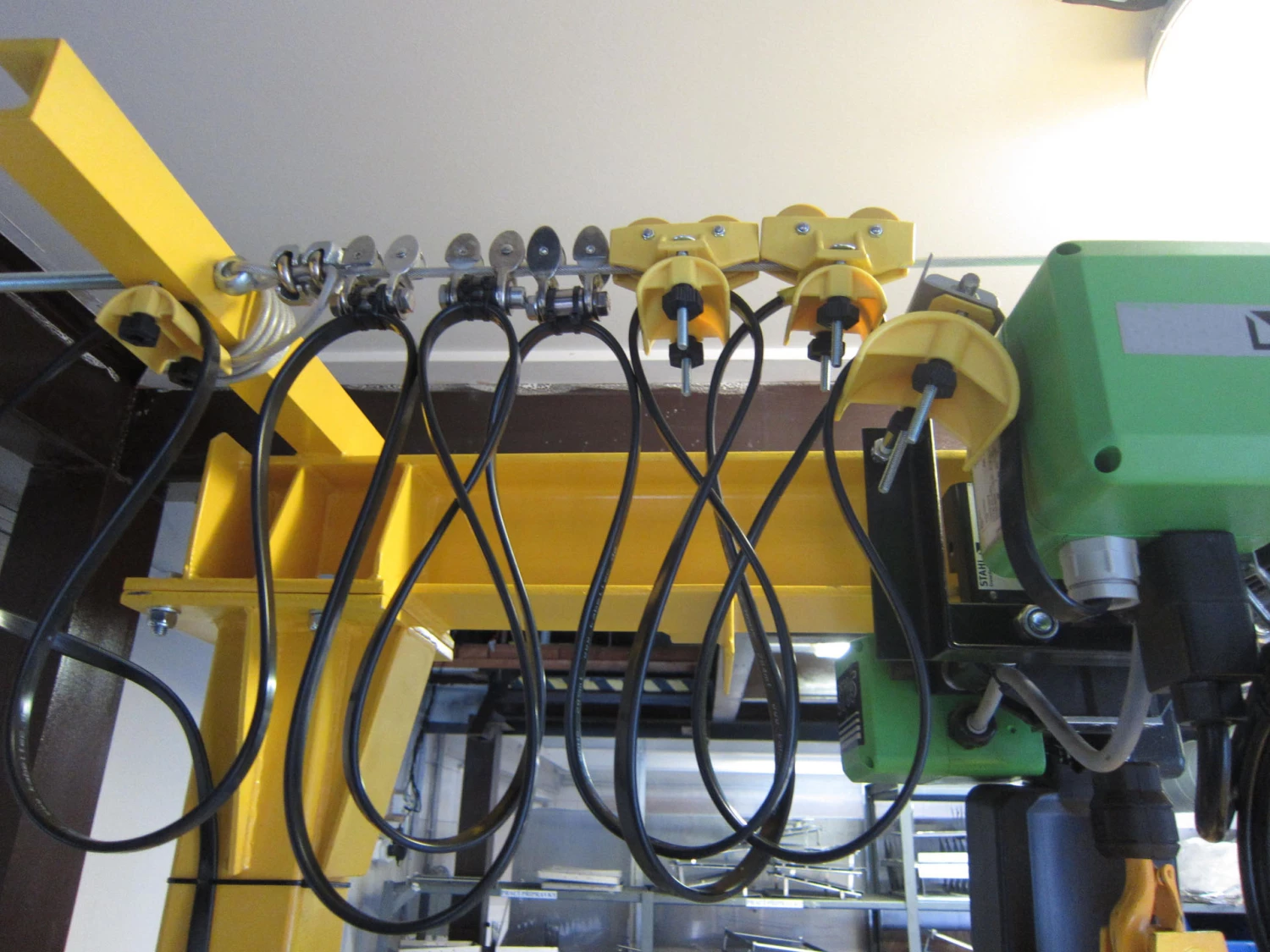

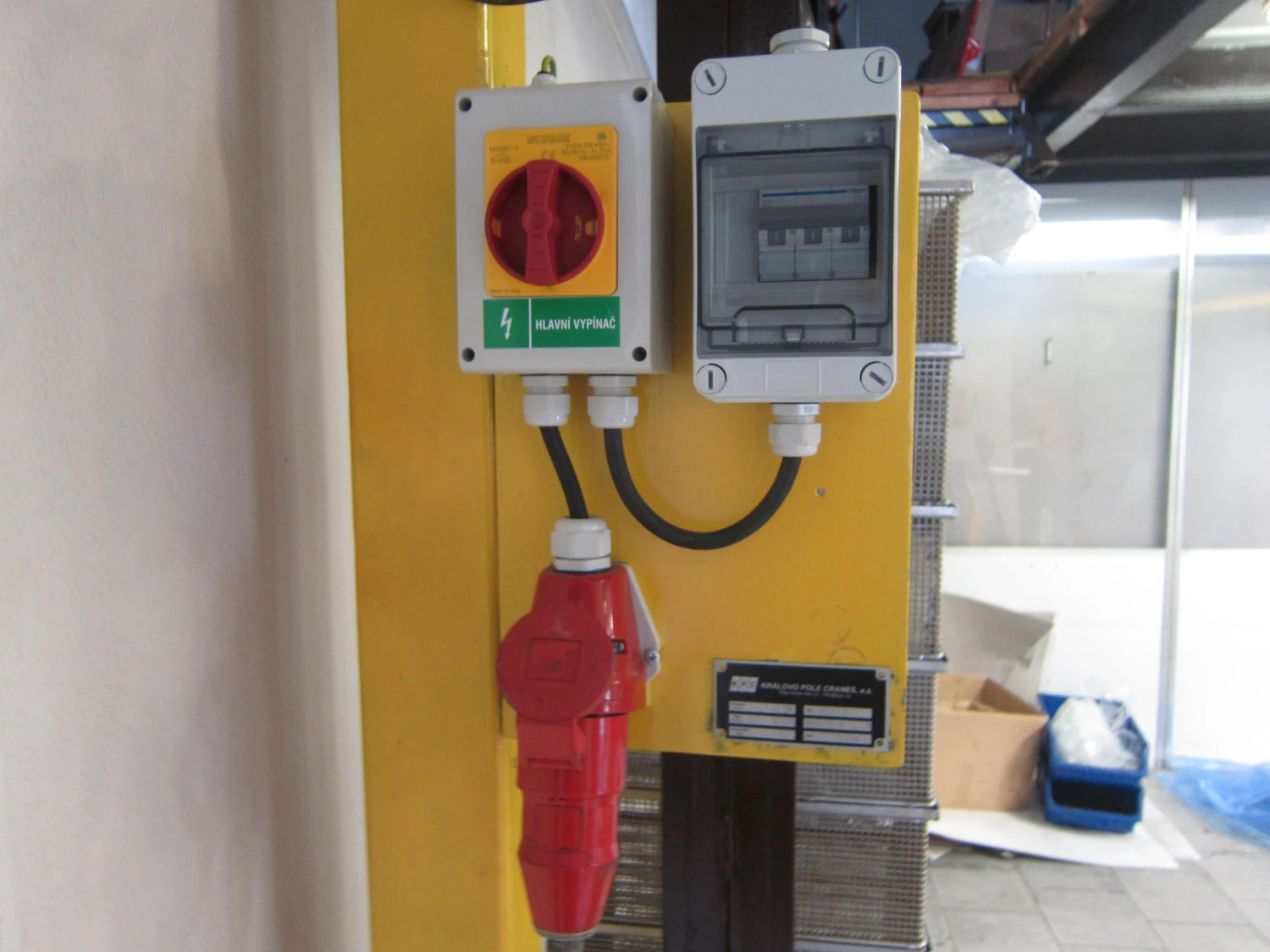

We choose a mobile gantry crane where there is a need to move lifting equipment between different workplaces or to serve sites without a permanent crane track.
The base is a portal steel structure on chassis with running wheels, between which the main beam with the hoist is placed. The crane can be moved around the hall or outdoor area, depending on the design, either manually or by means of handling equipment.
It is used in assembly work, machine maintenance, handling of parts or moulds. The design, lift height and control method are adapted to the specific operation to ensure safe, ergonomic and reliable handling.

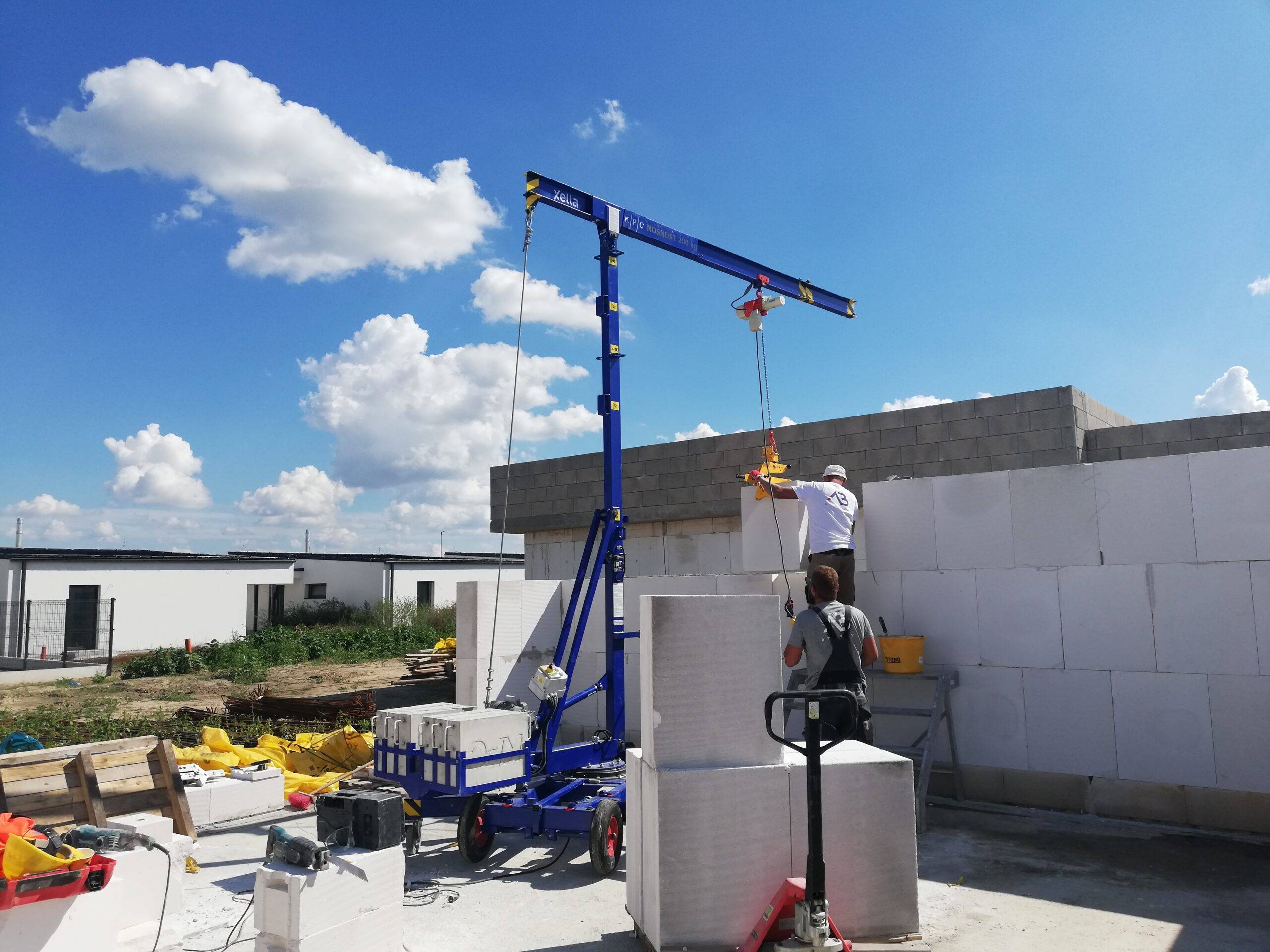

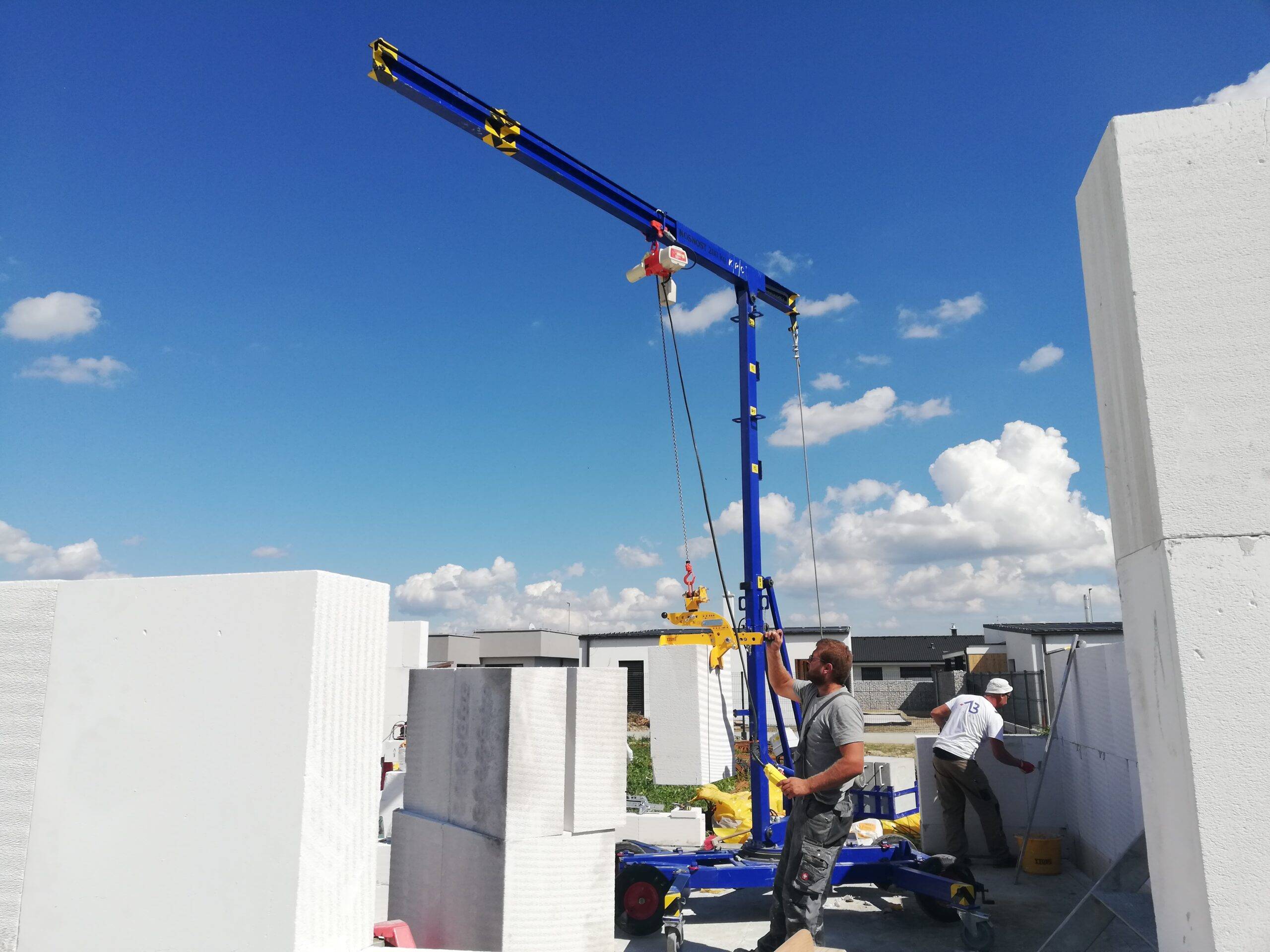

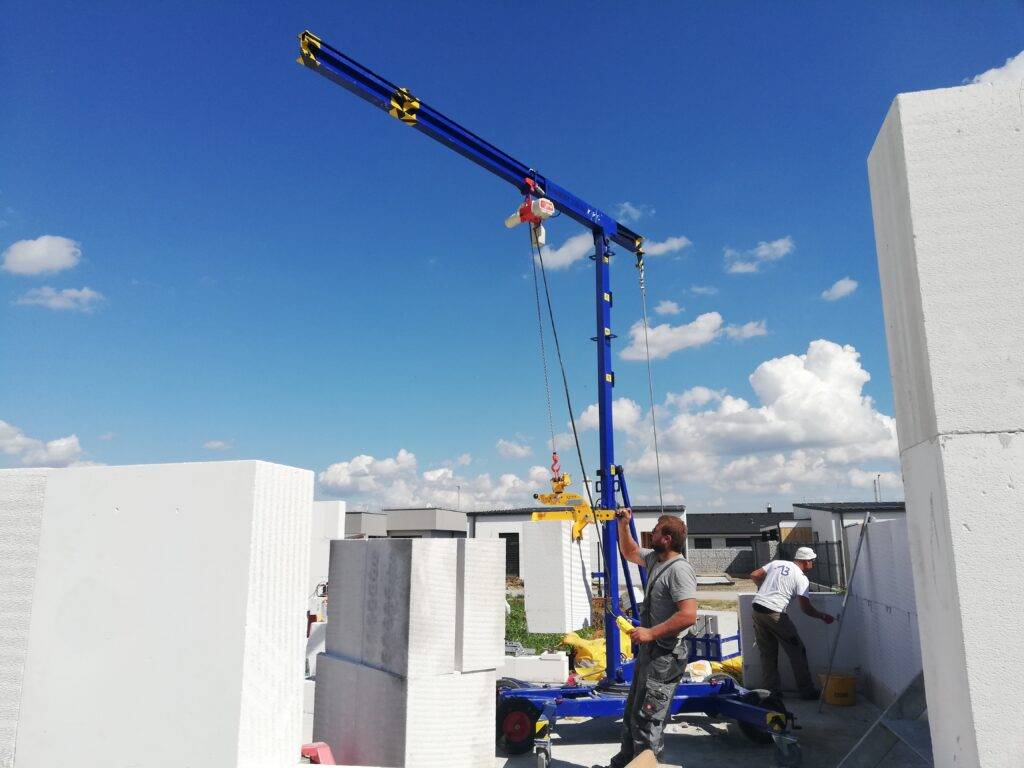

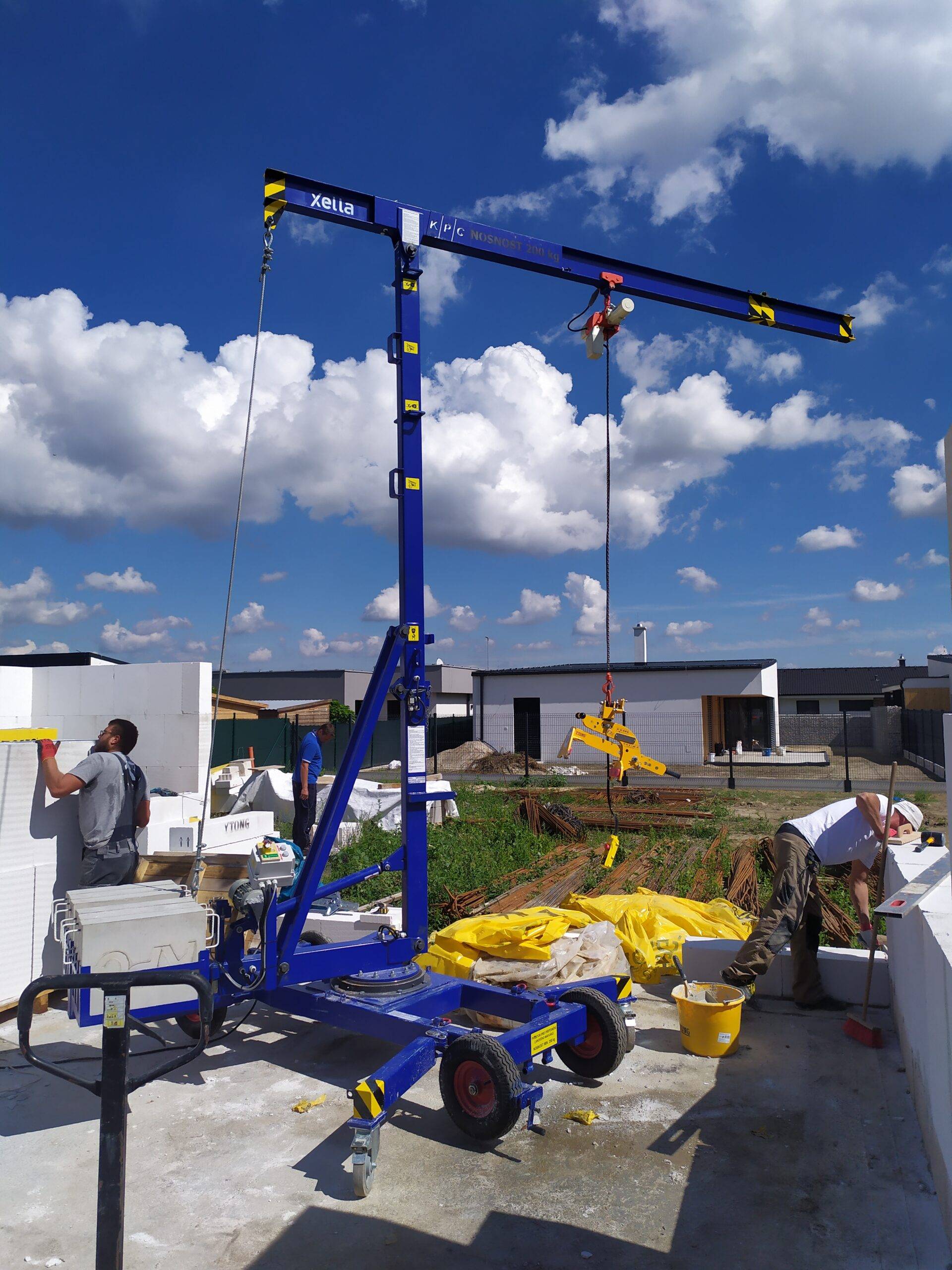

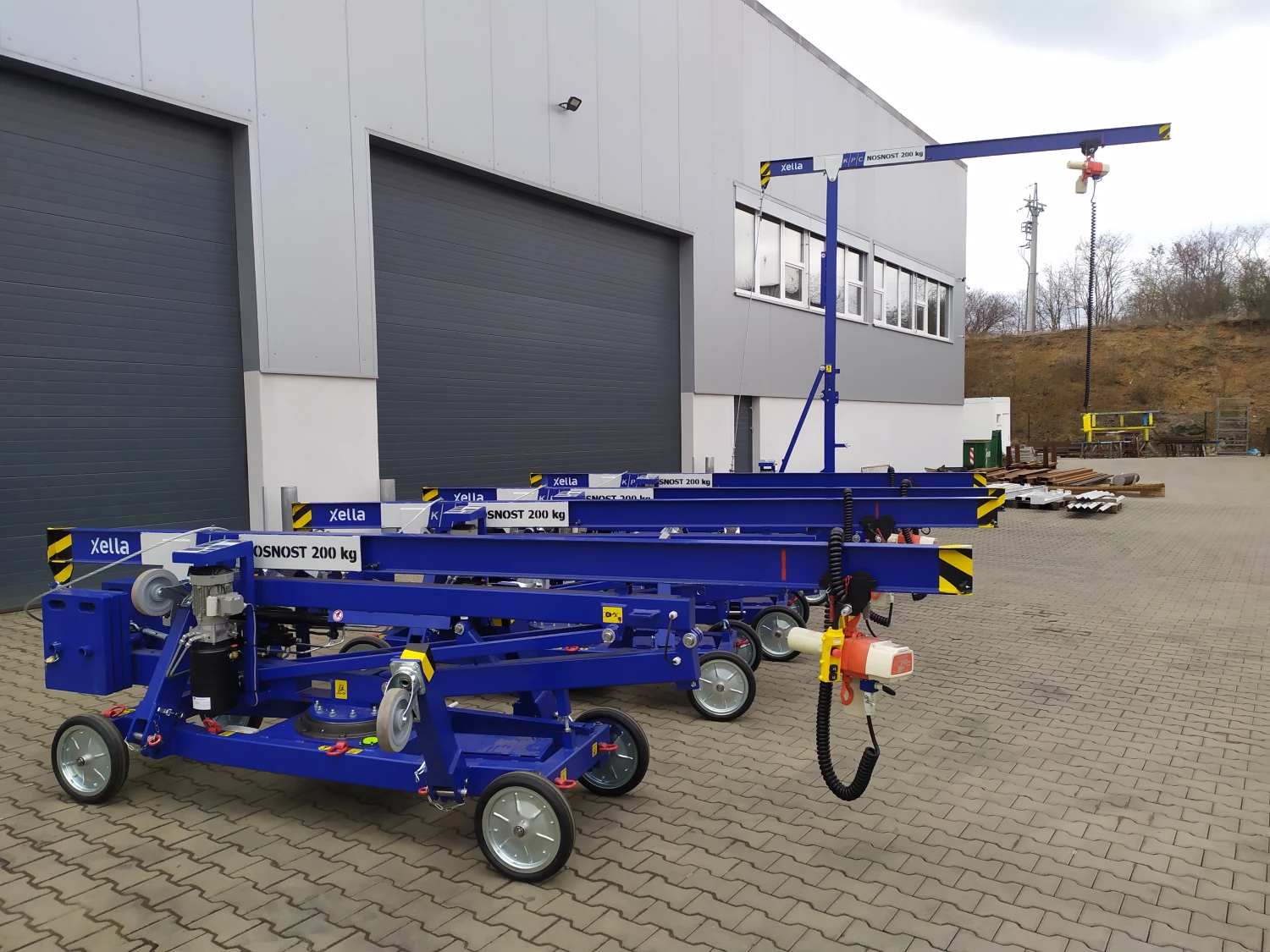

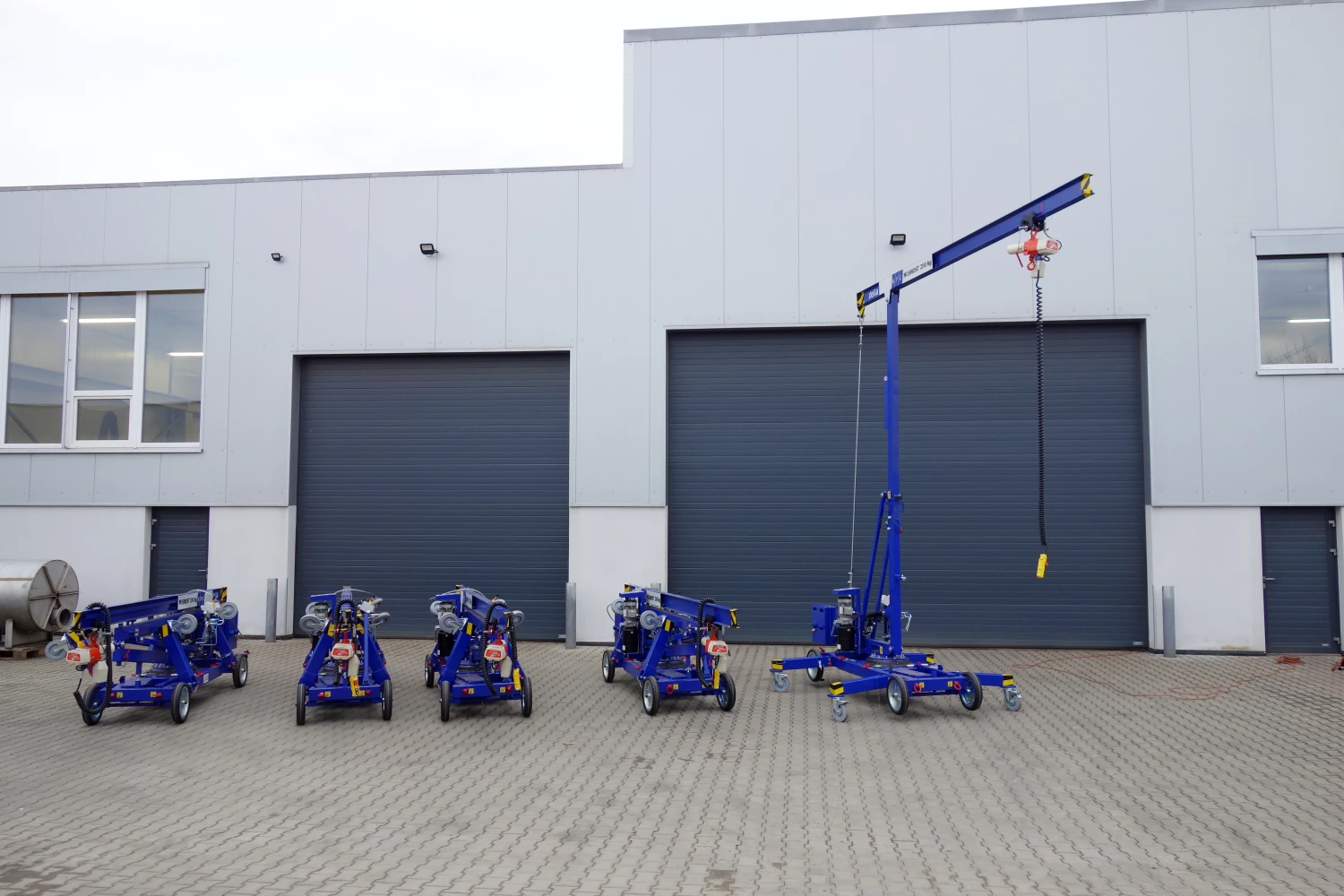

The mobile construction crane is specially designed for site handling.
It is mounted on a mobile chassis that can be transported by conventional transport equipment and is quickly set up on site using support feet and spread by a hydraulic cylinder. It is typically used for handling formwork, prefabricated products, reinforcement, process units or material on site.
The emphasis is on safety, stability in operating modes and easy-to-understand operation for operators in demanding construction conditions.

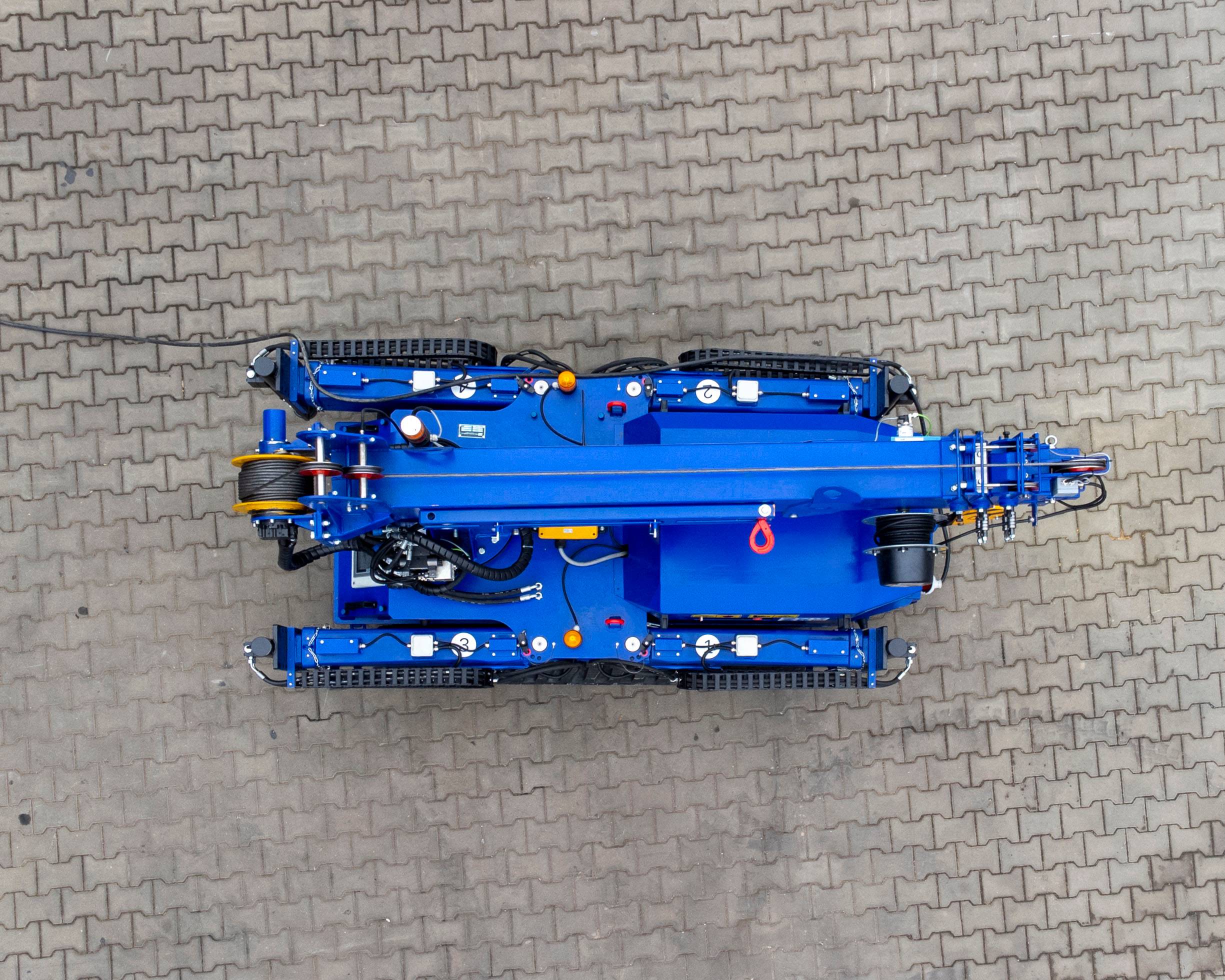

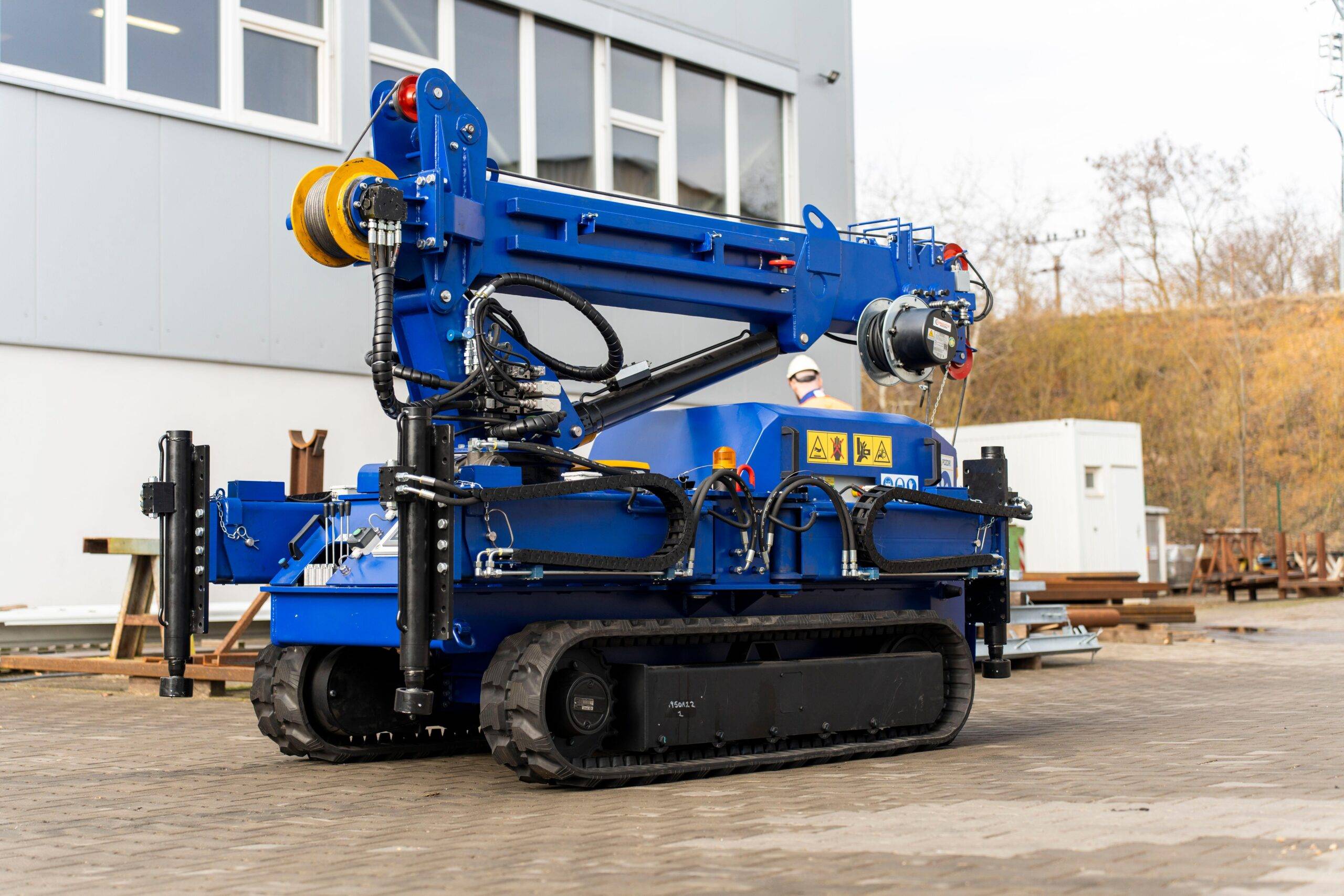

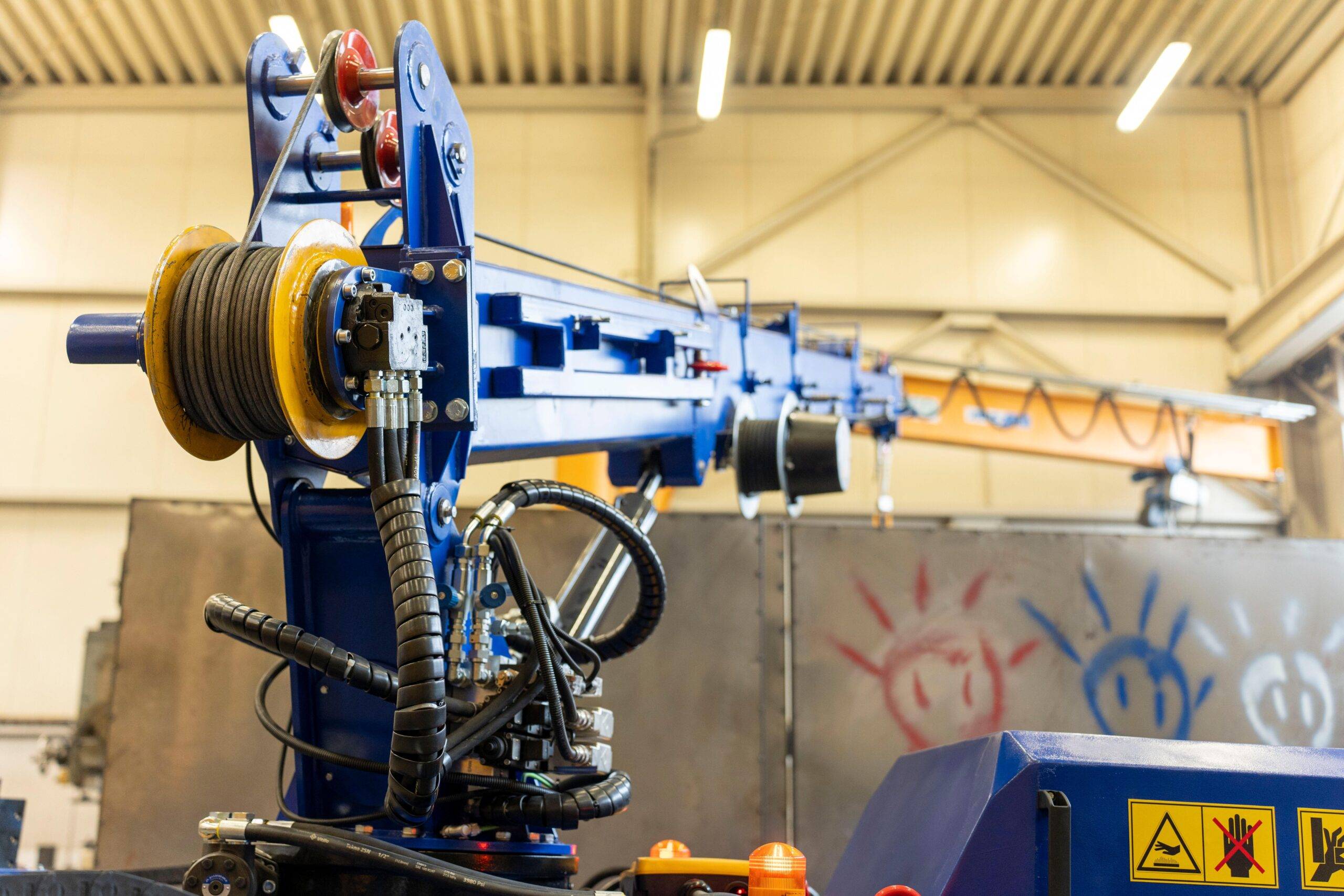

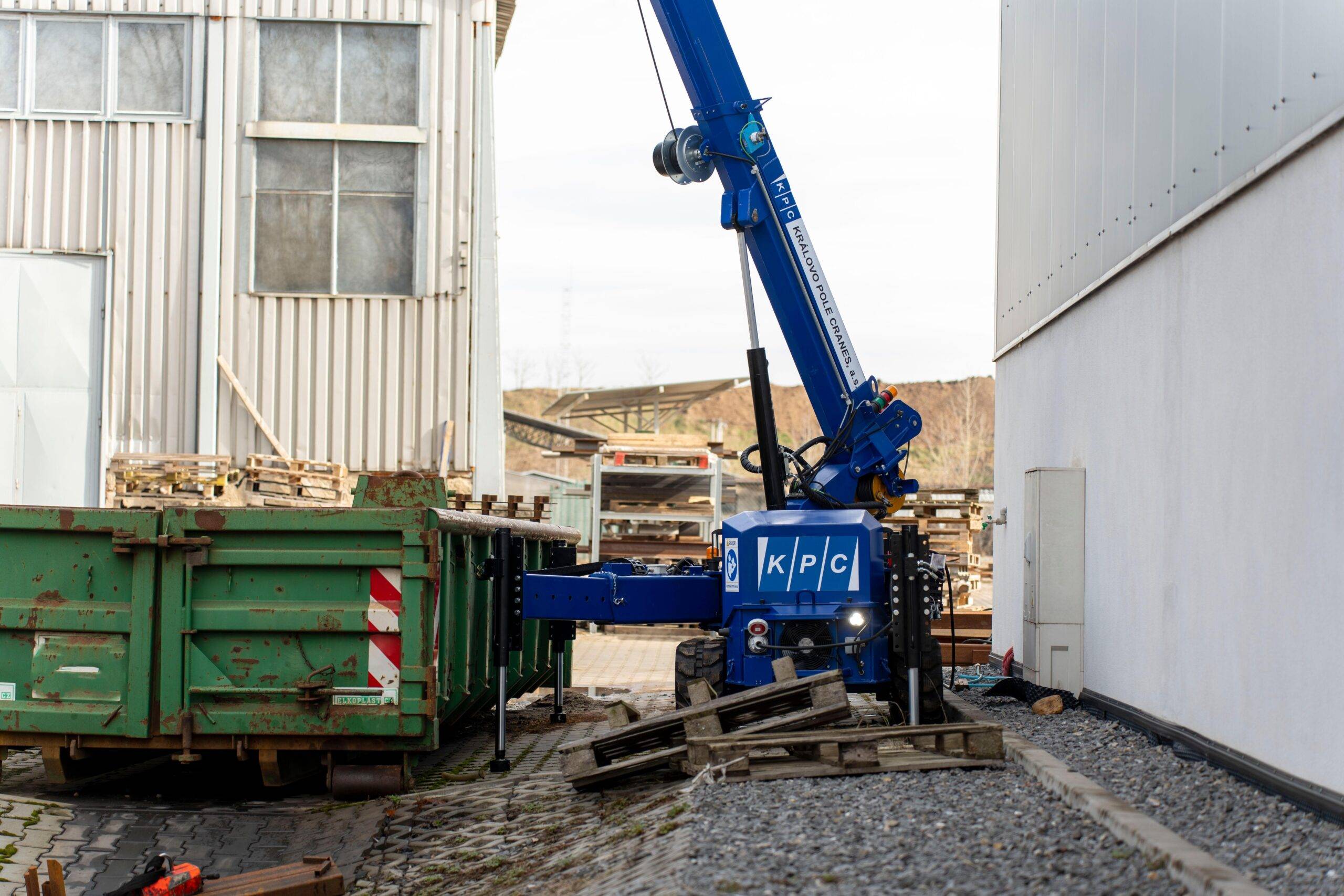

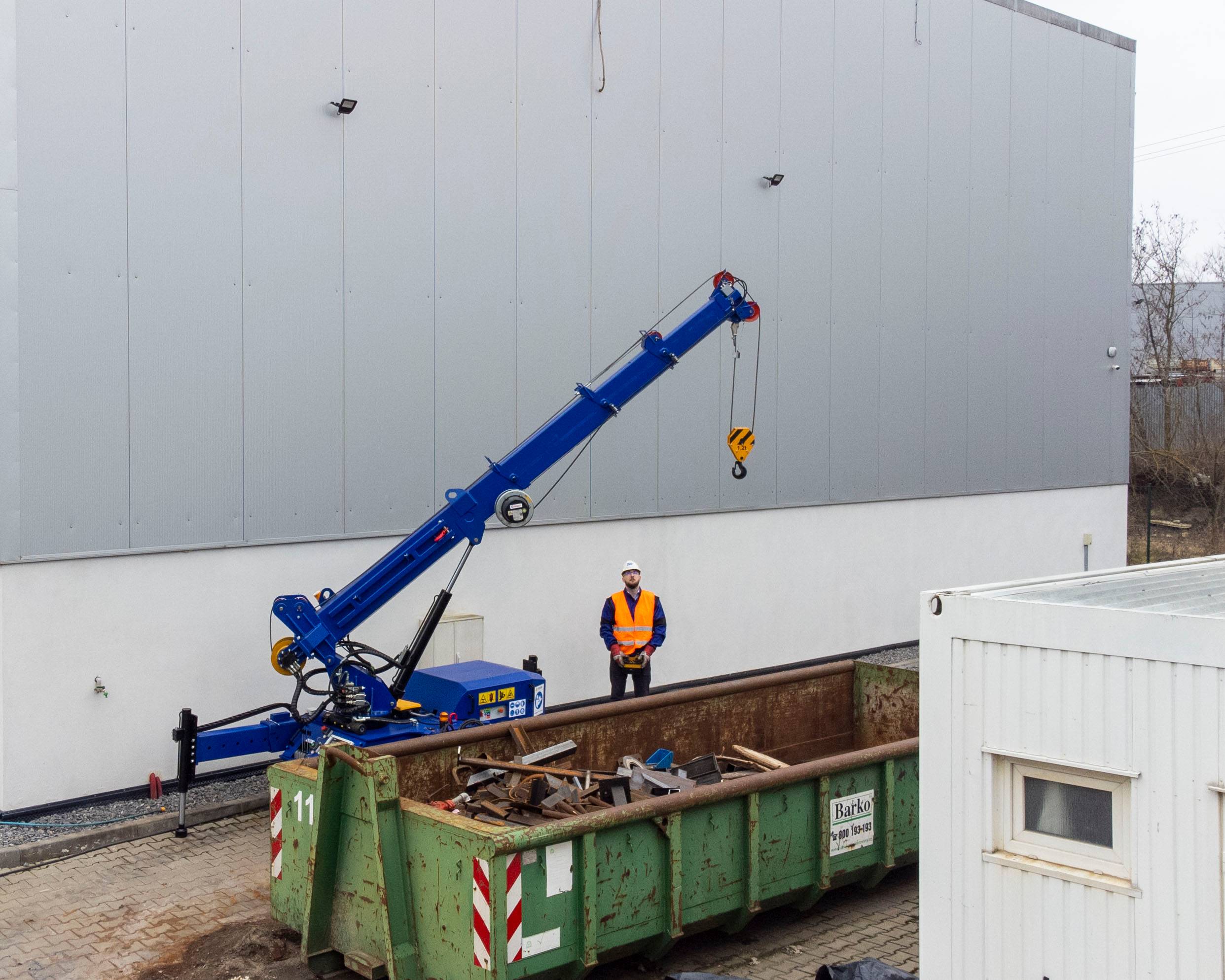

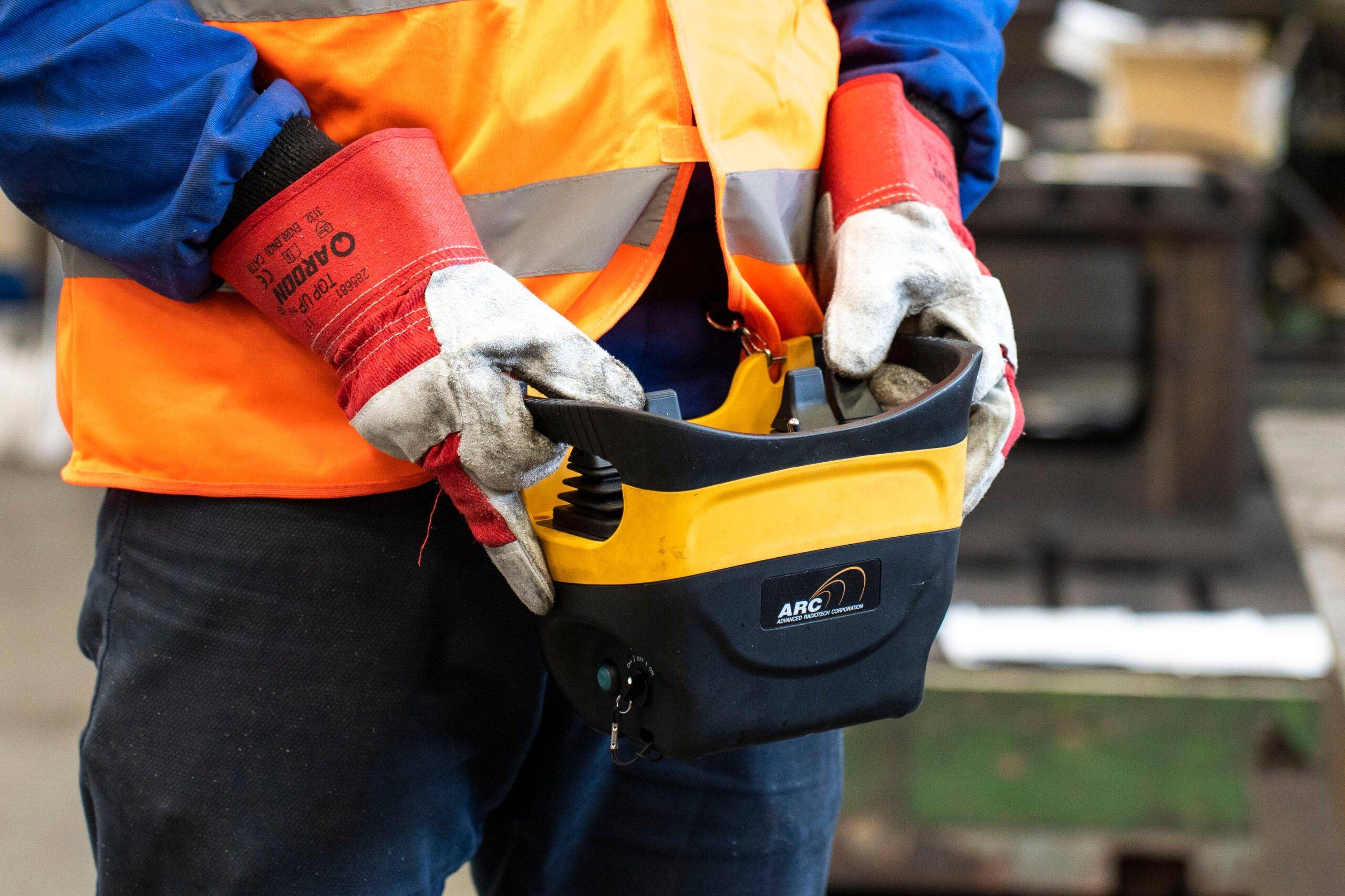

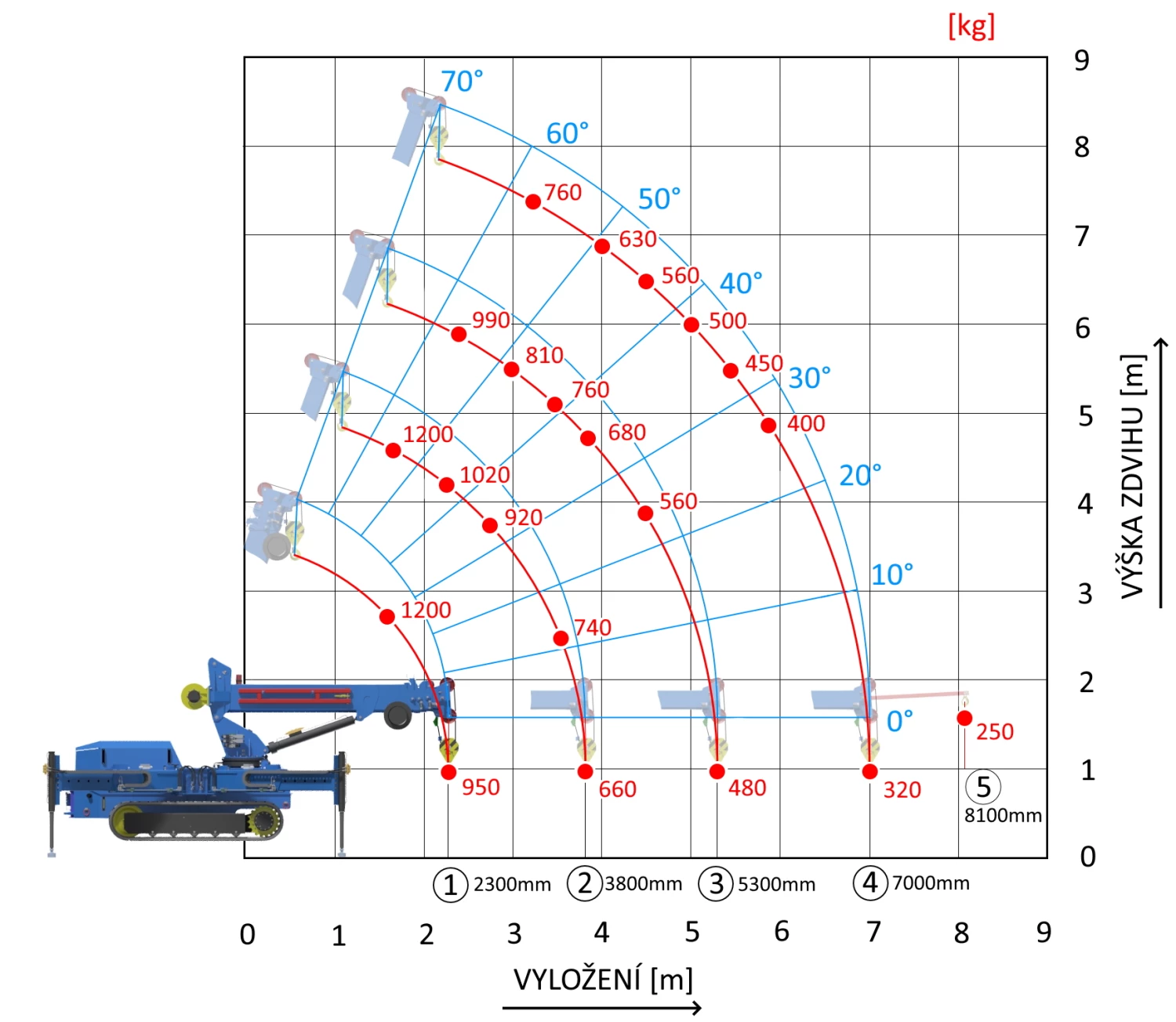

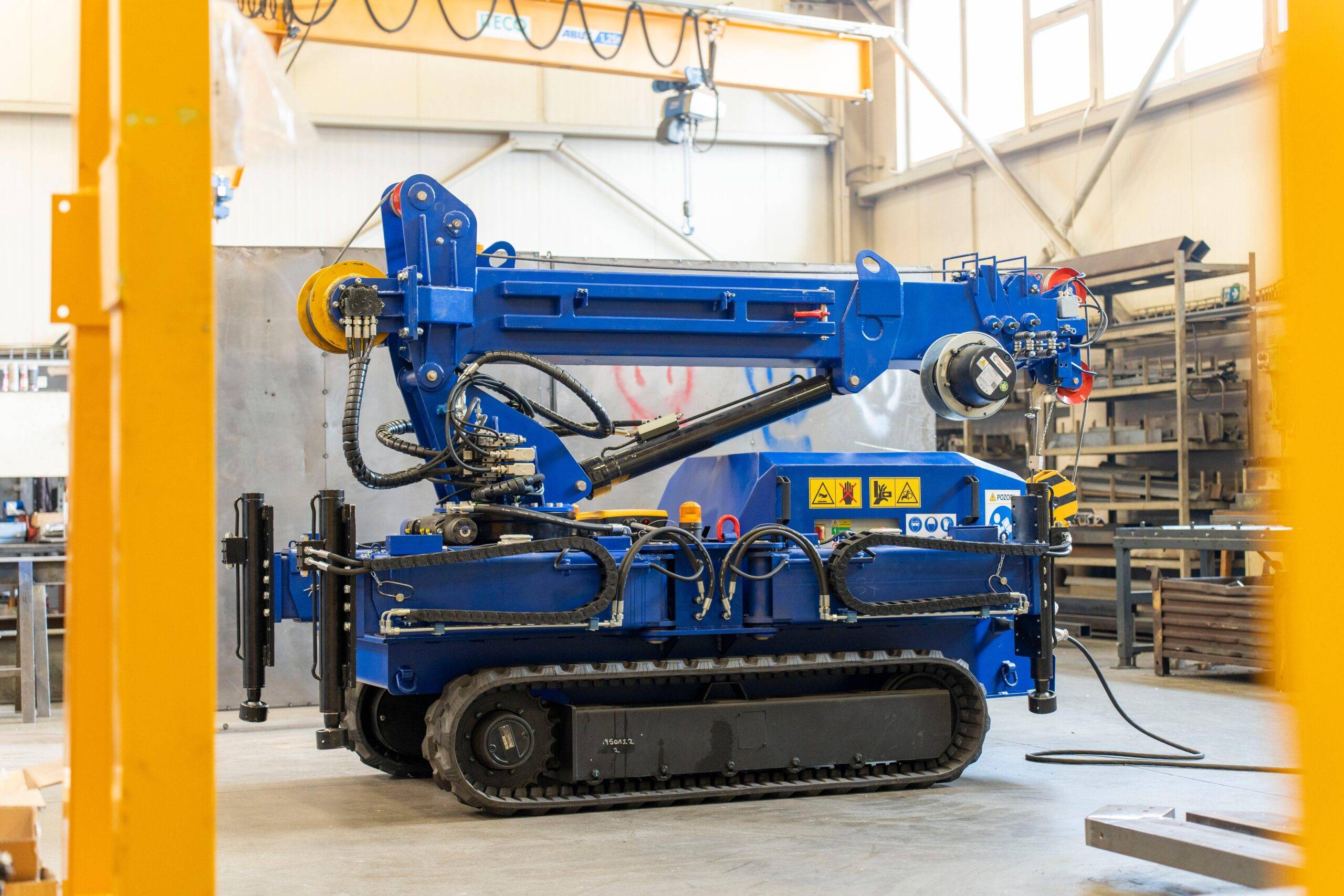

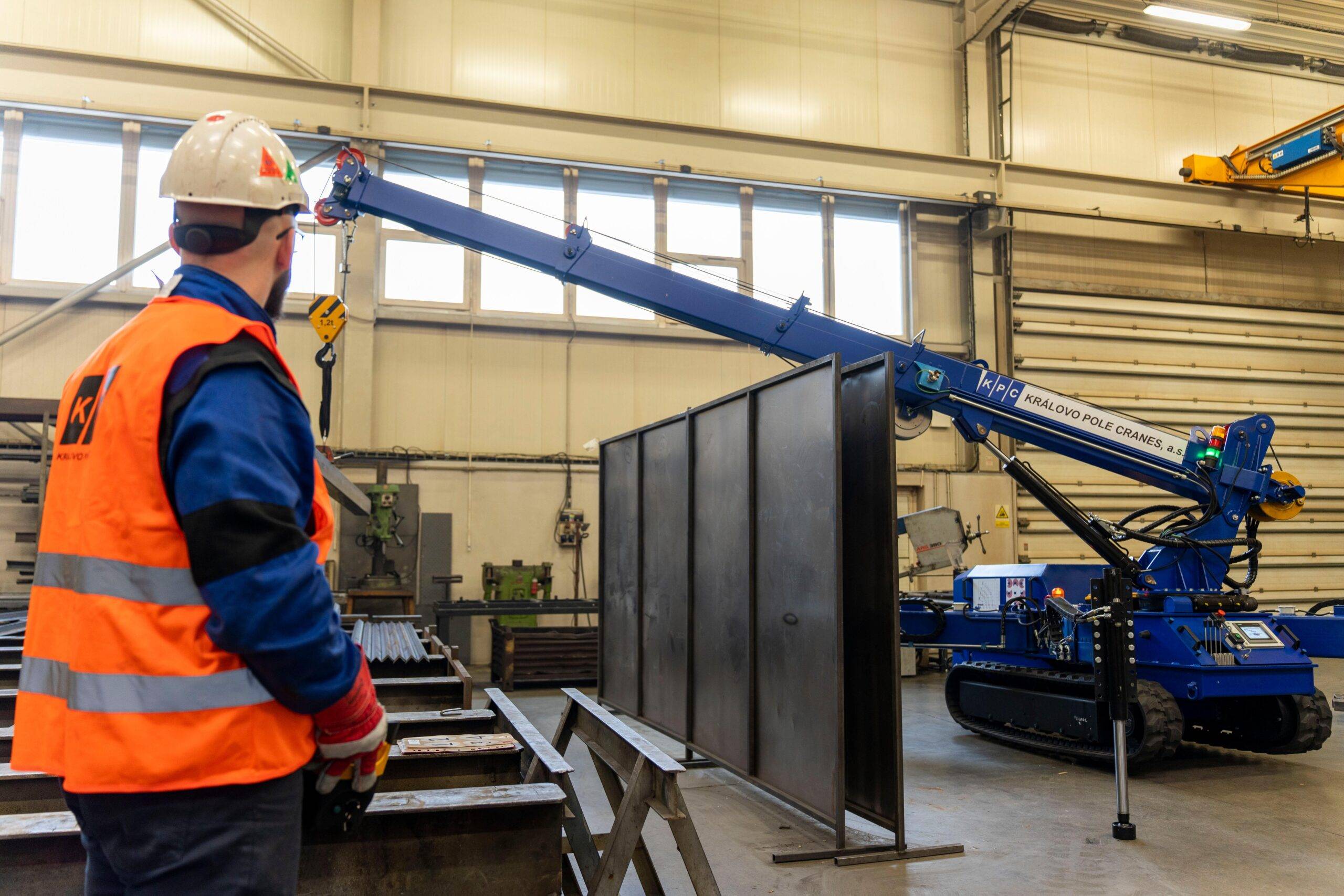

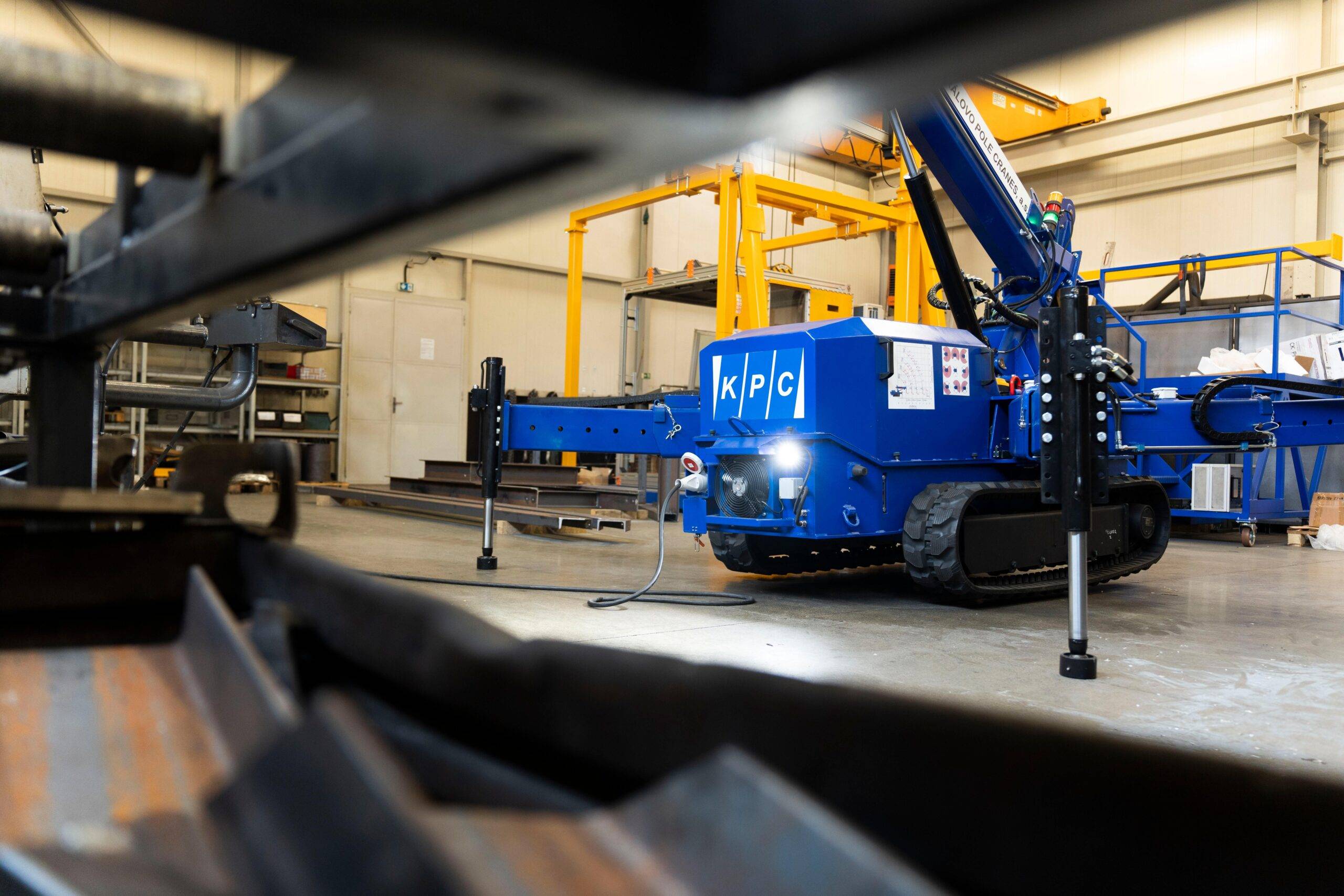

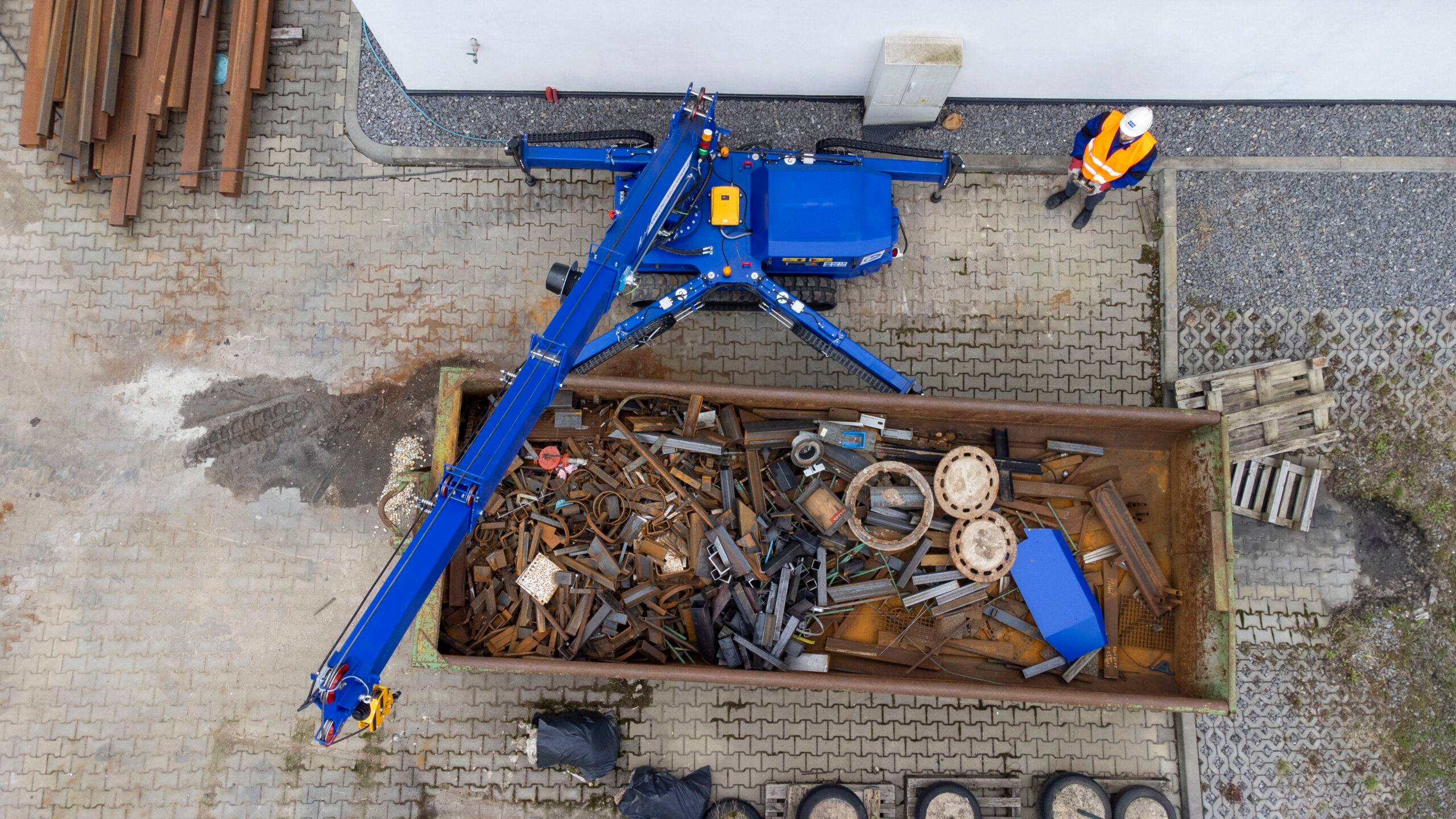

The KPC-MJ1200 crawler crane is a compact crane with a telescopic boom on a crawler chassis, designed for handling in space-constrained operations where a conventional crane cannot be used. Within the working area it is self-propelled, lifting and moving loads using radio remote control of all working movements.

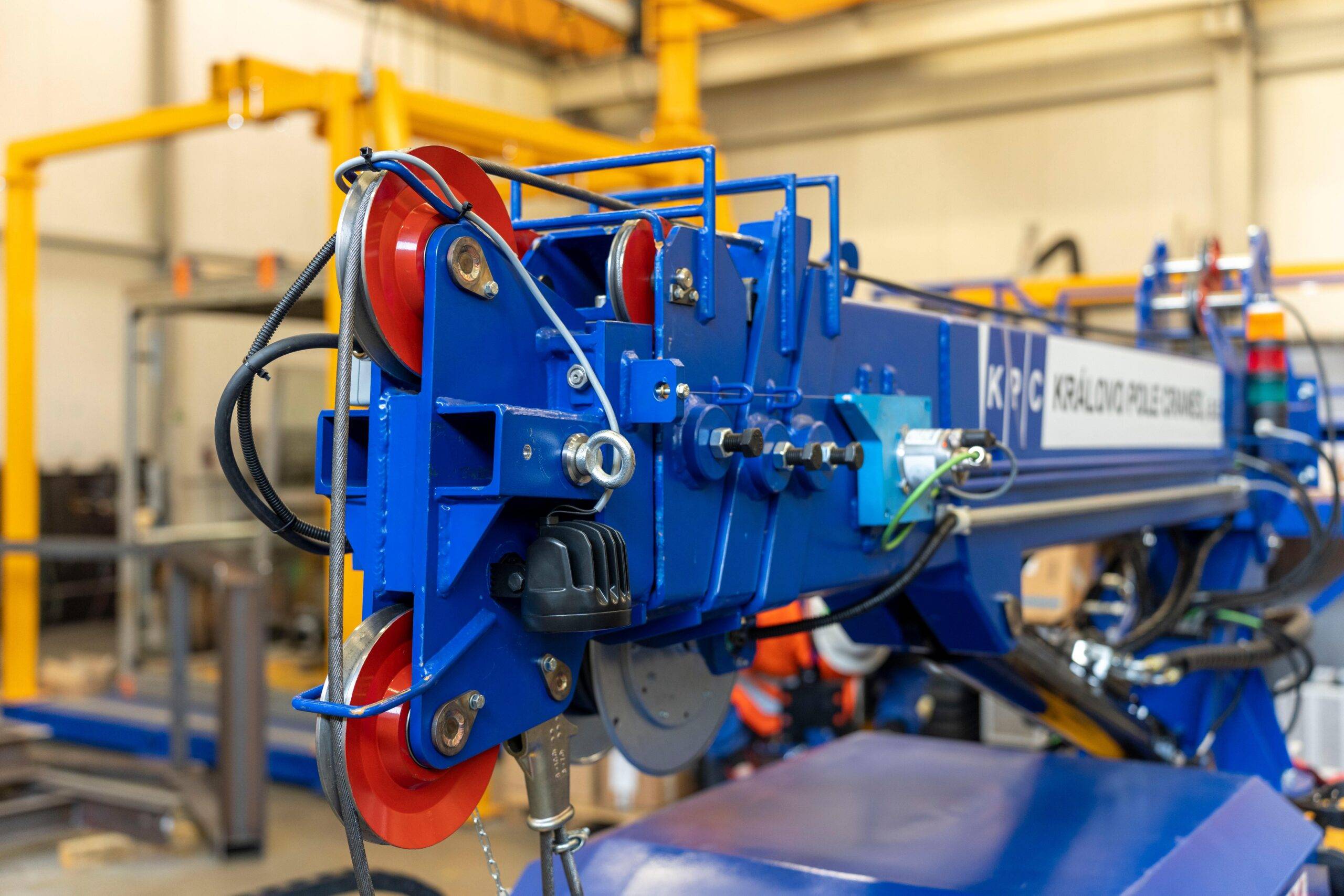

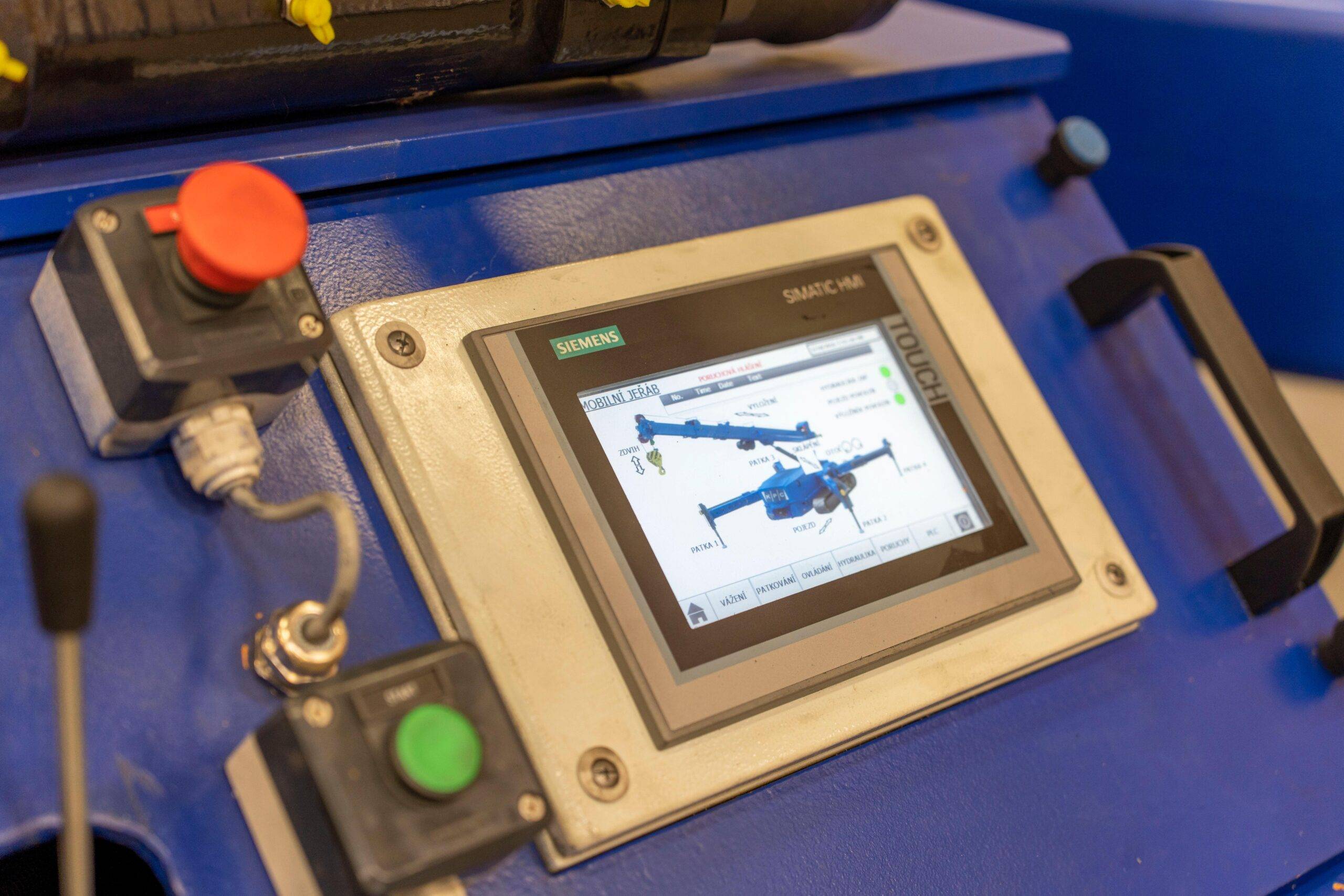

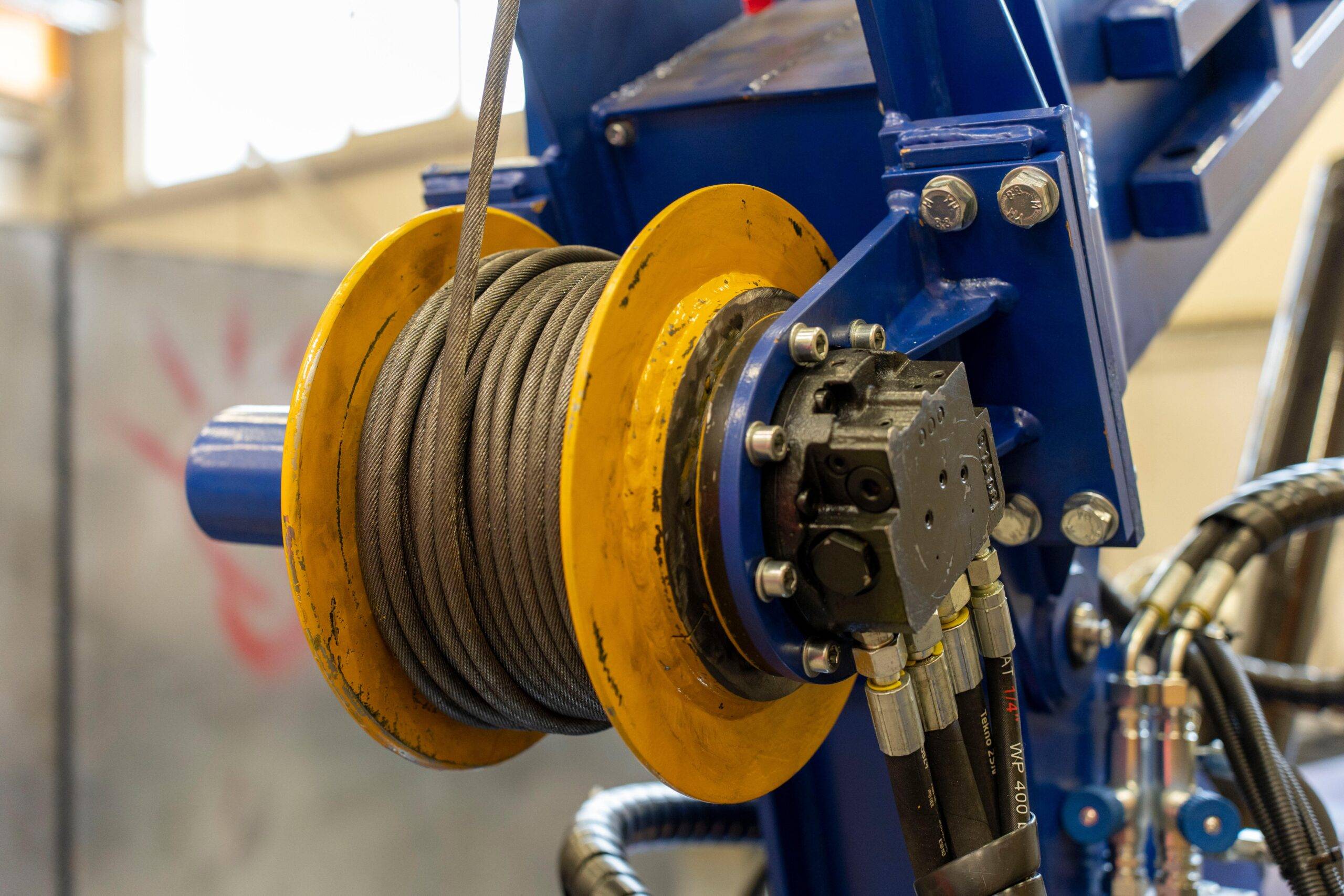

The design allows precise work in close proximity to machines, process units or building structures. The solution includes advanced safety systems - overload and stability monitoring, mechanical upper limit switch for pulleys, brake valves for hydraulic cylinders, travel/boom switch and limitation of the working range according to the actual extension of the stabilizing feet.
